Hot Dipped Galvanised Steel Wire JIS G 3548 SWGD High Carbon Steel Wire Rod

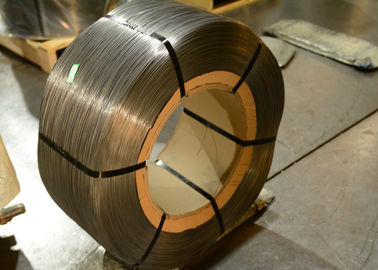

Large Image : Hot Dipped Galvanised Steel Wire JIS G 3548 SWGD High Carbon Steel Wire Rod

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-07-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z2 Pack, Strapped Coil
Delivery Time:	600 tonnes per Month

Contact Now

Detailed Product Description

Standard:	JIS G 3548 - 1994	Grade:	SWGD-1 SWGD-2 SWGD-3
Surface Finish:	Zinc	Process:	Hot Dipped And Dry Drawn
Packaging:	Z-2 Coil And Strapped Coil
High Light:	high tensile galvanized wire , Zinc Coated Steel Wire

Hot Dipped Galvanised Steel Wire JIS G 3548 SWGD High Carbon Material

Description

GHANGHUA – High Carbon Spring Expert

GHANGHUA is a leading carbon wire manufacture and exporter in China, over 20 years production experience of High Carbon Spring Steel Wire, We always supply our clients quality wire products and service. Galvanised steel wire is one of our important carbon steel wire products, it is manufactured according to standard JIS G 3548 for all sorts of spring and mechanical component manufacture.

Specification

1. Standard: JIS G 3521
2. Surface Finish: Glavanised
3. Production processes: Hot dipped and Dry cold drawn
4. Diameter and Mechanical properties

Diameter

0.60 0.65 0.70 0.80 0.90 1.00 1.00 1.20

1.40 1.60 1.80 2.00 2.30 2.90 3.20 3.50

Zinc coating weight g/mm2

Diameter mm	SWGD ( – 1 / -2 / -3 )
0.60 – up 0.80	60
0.80 – up 1.00	70
1.00 – up 1.20	80
1.20 – up 1.50	90
1.50 – up 1.90	100
1.90 – up 2.50	110
2.50 – up 3.20	125

Diameter Tolerance mm

Diameter mm	SWGD ( – 1 / -2 / -3 )
0.60 – up 0.80	+ 0.02
0.80 – up 1.00	+ 0.02
1.00 – up 1.20	+ 0.03
1.20 – up 2.00	+ 0.03
2.00 – up 3.20	+ 0.04

Mechanical properties

Diameter mm	Tensile Strength N/mm2			Torsion N
Diameter mm	SWGD-1	SWGD-2	SWGD-3	SWGD
0.60 – up 0.80	1520-1770	1170-2060	2060-2350	20
0.80 – up 1.00	1520-1770	1170-2010	2010-2260
1.00 – up 1.20	1470-1720	1720-1960	1960-2210
1.20 – up 1.40	1420-1670	1670-1810	1910-2160
1.40 – up 1.60	1370-1620	1620-1860	1860-2110
1.60 – up 1.80	1320-1570	1570-1810	1810-2060
1.80 – up 2.00	1270-1520	1520-1770	1770-2010
2.00 – up 2.30	1270-1470	1470-1720	1770-2010	15
2.30 – up 2.60	1230-1420	1420-1670	1720-1960
2.60 – up 2.90	1230-1420	1420-1670	1670-1910
2.90 – up 3.20	1180-1370	1370-1620	1620-1860

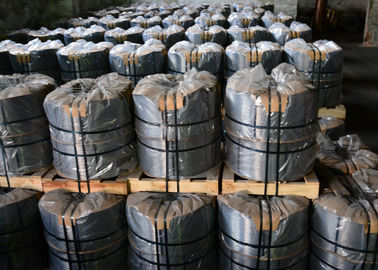

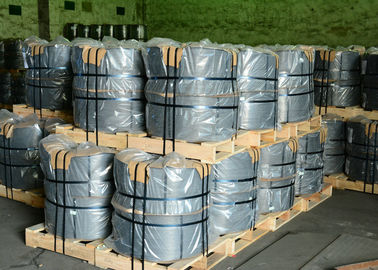

Packaging:

Z2 coils with paper core
Strapped Coils

Advantage

Strict raw material selection

Consistent tensile strength

Superior surface finish

Trouble- free pay off
