C1065 C1072 C1080 Bronze Coated Steel Spring Wire T / S 1500 -2300 Mpa

GUANGHUA is a very professional company. I am very happy to cooperate with them. I am always content with their efficient delivery.

—— Mr Brown

They will always keep their words, and always put customer's benefit on first consideration, that's why we chose them as a long-term business partner!

—— Mr.Thomas BIttig

Thanks for your good quality product and excellent service, we will come back again!

—— Amarjit Singh

I'm Online Chat Now

C1065 C1072 C1080 Bronze Coated Steel Spring Wire T / S 1500 -2300 Mpa

China C1065 C1072  C1080 Bronze Coated Steel Spring Wire T / S 1500 -2300 Mpa supplier
C1065 C1072  C1080 Bronze Coated Steel Spring Wire T / S 1500 -2300 Mpa supplier C1065 C1072  C1080 Bronze Coated Steel Spring Wire T / S 1500 -2300 Mpa supplier C1065 C1072  C1080 Bronze Coated Steel Spring Wire T / S 1500 -2300 Mpa supplier C1065 C1072  C1080 Bronze Coated Steel Spring Wire T / S 1500 -2300 Mpa supplier

Large Image :  C1065 C1072 C1080 Bronze Coated Steel Spring Wire T / S 1500 -2300 Mpa

Product Details:

Place of Origin: China
Brand Name: GangDa
Model Number: GD-01-07

Payment & Shipping Terms:

Minimum Order Quantity: 1 Tonne
Packaging Details: Z-2 Pack or Steel reel
Delivery Time: 20-25 work days
Supply Ability: 1200 Tonnes per Month
Contact Now
Detailed Product Description
Application: Flexiable Air Duct & Hose , PE Pipe Size Range: 0.60mm To 3.00mm
Finishes: Bronze Coated T / S: 1500 -2300 Mpa
Pack: Z-2 Pack , Steel Reel Standard: GB14450-2003 Or As Per Client's Request
High Light:

tire bead wire

,

spring steel wire

Bronze Coated Steel Wire  Diameter 0.60 to 3.0mm T / S 1500 – 2300 Mpa   Z2 Packs



Specifications:

1. Diameter: a. 0.60mm 0.70mm 0.78/0.80mm 0.89/0.90mm 1.00mm 1.10mm 1.20mm  1.26mm                                    1.30mm
                    b. 1.50mm 1.65mm 1.80mm 2.00mm 2.20mm 2.30mm
                    c. 2.80mm 3.00mm 3.10mm 3.20mm 3.30mm 3.50mm
                    Diameter Tolerance: +/- 0.02mm or +/-0.03mm
2. Finish: Bronze coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength:  a. 1750 – 2300 Mpa
                                 b. 1500 – 1900 Mpa
                                 c. as per client's request
5. Steel Grade: High Carbon Steel  C1065  C1070  C1072  C1080

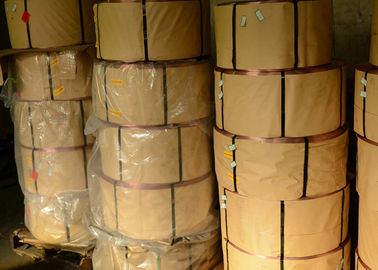

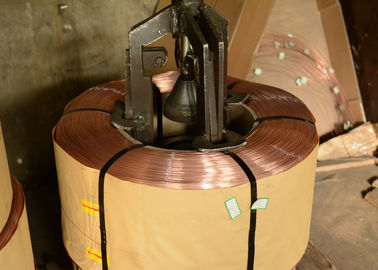

6. Package: 1) 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
                        ID: 355mm Min.
                        OD: 720mm Max.
                         Wire reel Width: 280mm

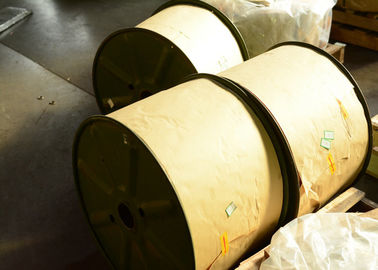

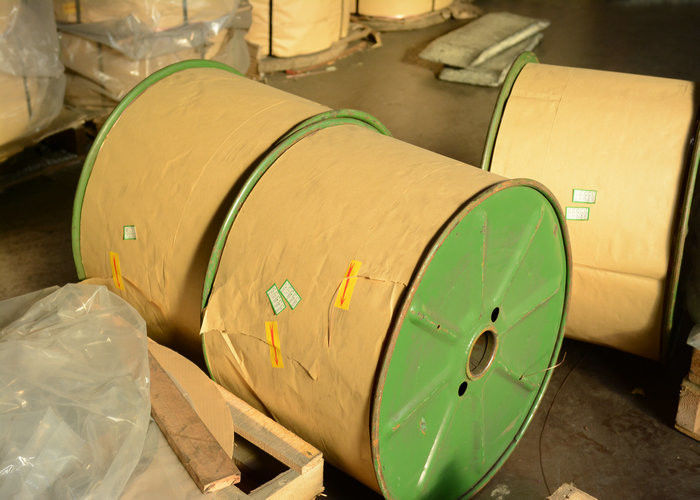

                     2) 400kgs per steel reel. 1 reel or 2 reels on one pallets
                          Flange diameter: 760mm
                         Traverse length: 280mm
                          Barrel diameter: 354 mm
                          Height of reel: 320mm
7. Standard: GB14450-2004 or as per client’s specification

Description:

Our Bronze Coated Steel Wires are manufactured from quality high carbon wire rods, with superior surface coating and are used for the reinforcement of all sorts of reliable hose, duct and pipe.

Applications:

Armoured hoses
Flexible ducting
Hose reinforcing
Pipe

Competitive Advantage:

Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
