Bronze coated Tyre Bead Wire , 0.78 - 2.00mm Spring Steel Wire for Air duct

China Bronze coated Tyre Bead Wire , 0.78  - 2.00mm Spring Steel Wire for Air duct supplier
Bronze coated Tyre Bead Wire , 0.78  - 2.00mm Spring Steel Wire for Air duct supplier Bronze coated Tyre Bead Wire , 0.78  - 2.00mm Spring Steel Wire for Air duct supplier Bronze coated Tyre Bead Wire , 0.78  - 2.00mm Spring Steel Wire for Air duct supplier Bronze coated Tyre Bead Wire , 0.78  - 2.00mm Spring Steel Wire for Air duct supplier

Large Image :  Bronze coated Tyre Bead Wire , 0.78 - 2.00mm Spring Steel Wire for Air duct

Product Details:

Place of Origin: China
Brand Name: GangDa
Model Number: GD-01- 12

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne
Packaging Details: 400 kgs with spooless cores Z-2 Packs, 2 or 3 coills in one pallet, 24 Pallets per 20" Container
Delivery Time: 25 work days
Supply Ability: 1000 tonnes per Month
Detailed Product Description
Application: Flexible Air Duct & Hose Size Range: 0.78mm To 1.50mm
Steel Grade: High Carbon Steel Pack: Z- Pack
Finishes: Bronze Coated Standard: GB14450-2003
High Light:

tire bead wire

,

spring steel wire

Z2 pack  High Carbon Bronze Spring Steel Wire T / S 1750 to 2300Mpa  Air duct Diameter 0.78  to 2.00mm



Specifications:

1.Diameter:  0.78 0.90mm 1.00mm 1.10mm 1.20mm 1.26mm 1.50mm
   Diameter Tolerance: +/- 0.02mm
2. Finishes: Bronze coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength:  1750 – 2300 Mpa
5. Steel Grade: High Carbon Steel  C1065  C1070  C1072  C1080

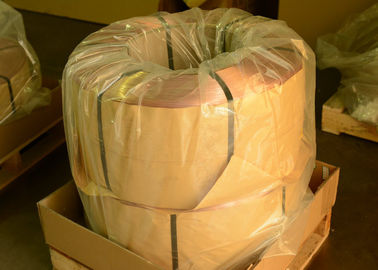

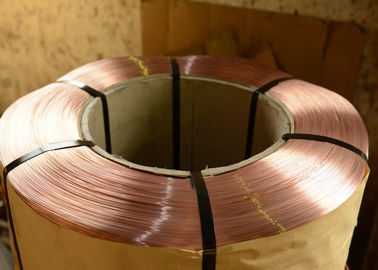

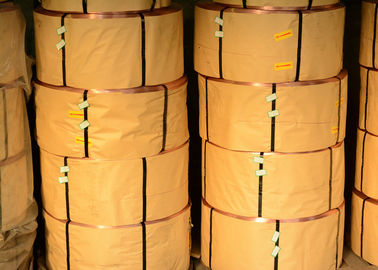

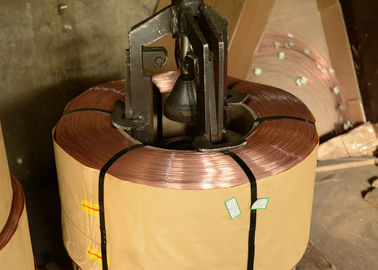

6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
                    ID: 355mm Min.
                    OD: 720mm Max.
                   Wire reel Width: 280mm
7. Standard: GB14450-2004 or as per client’s specification

Description:

Bead Wires are manufactured from quality high carbon wire rods, with superior surface coating and are used for the reinforcement of all sorts of reliable hose & duct.

Applications:

Armoured hoses
Flexible ducting
Hose reinforcing

Competitive Advantage:

Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
