Standard: | JIS G 3521 | Raw Material: | JIS G 3506 High Carbon Wire Rod |
---|---|---|---|
Surface Finish: | Bright Cold Drawn And Phosohatized | Tensile Strength: | According To Dia. And T/S Class |
Packaging: | Z2 Coils With Paper Core | ||
High Light: | carbon steel wire,Tyre Bead Wire |
GHANGHUA – High Carbon Spring Expert
GHANGHUA is a leading carbon wire manufacture and exporter in China, over 20 years production experience of High Carbon Spring Steel Wire, We always supply our clients quality wire products and service. Hard Drawn steel wire is one of our important carbon steel wire products, it is manufactured according to standard JIS G 3521 for all sorts of spring and mechanical component manufacture.
1. Surface Finish: Bright dry drawn and phosphatized
Bright dry drawn and grey
2. Standard: JIS G 3521
3. Diameter and Mechanical properties
Diameter and Mechanical properties
Dia. mm |
Tensile Strength N/mm2 |
|
Dia. mm |
Tensile Strength N/mm2 |
||||
SW-A |
SW-B |
SW-C |
SW-A |
SW-B |
SW-C |
|||
0.45 |
1620-1910 |
1910-2210 |
2210-2500 |
1.80 |
1270-1520 |
1520-1770 |
1770-2010 |
|
0.50 |
1620-1910 |
1910-2210 |
2210-2500 |
2.00 |
1270-1470 |
1470-1720 |
1720-1960 |
|
0.60 |
1570-1810 |
1810-2110 |
2110-2400 |
2.30 |
1230-1420 |
1420-1670 |
1670-1910 |
|
0.65 |
1570-1810 |
1810-2110 |
2110-2400 |
2.60 |
1230-1420 |
1420-1670 |
1670-1910 |
|
0.70 |
1520-1770 |
1770-2060 |
2060-2350 |
2.90 |
1180-1370 |
1370-1620 |
1620-1860 |
|
0.80 |
1520-1770 |
1770-2060 |
2010-2300 |
3.20 |
1180-1370 |
1370-1570 |
1570-1810 |
|
0.90 |
1520-1770 |
1770-2060 |
2010-2260 |
3.50 |
1180-1370 |
1370-1570 |
1570-1770 |
|
1.00 |
1470-1720 |
1720-1960 |
1960-2210 |
4.00 |
1180-1370 |
1370-1570 |
1570-1770 |
|
1.20 |
1420-1670 |
1670-1910 |
1910-2160 |
4.50 |
1130-1320 |
1320-1520 |
1520-1720 |
|
1.40 |
1370-1620 |
1620-1860 |
1860-2110 |
5.00 |
1130-1320 |
1320-1520 |
1520-1720 |
|
1.60 |
1320-1570 |
1570-1810 |
1810-2060 |
5.50 |
1080-1270 |
1270-1470 |
1470-1670 |
|
|
4. Torsion
Torsion
Diameter mm |
Torsion ( min) |
>0.70 --- < 2.00 |
20 |
2.00 --- < 3.50 |
15 |
3.50 --- < 6.00 |
10 |
5. Raw Material
High carbon wire rod
Chemical Requirements
Element |
Composition, % |
Carbon |
0.45 – 0.85 |
Manganese |
0.30 – 1.00 |
Phosphorus, max |
0.040 |
Sulfur, max |
0.050 |
Silicon |
0.020 |
6. Cast : As per client’s request

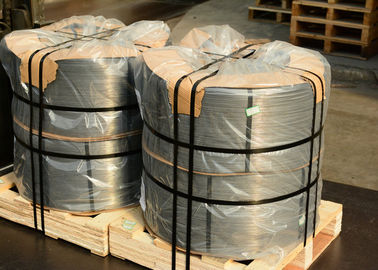

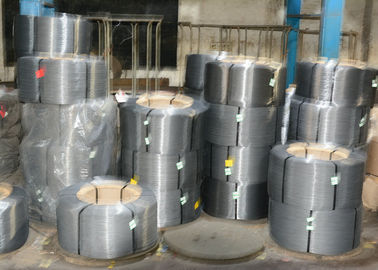

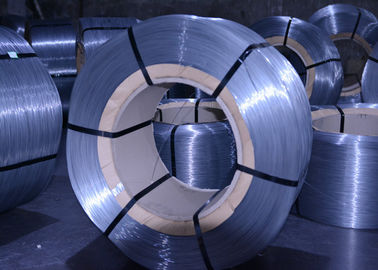

7.Packaging
8. Application
9. Advantage
