0.062 inch 0.080 inch 0.135 inch Bronze / Copper Coated Steel Wire for Air Duct

China 0.062 inch 0.080 inch 0.135 inch Bronze / Copper Coated Steel Wire for Air Duct supplier
0.062 inch 0.080 inch 0.135 inch Bronze / Copper Coated Steel Wire for Air Duct supplier 0.062 inch 0.080 inch 0.135 inch Bronze / Copper Coated Steel Wire for Air Duct supplier 0.062 inch 0.080 inch 0.135 inch Bronze / Copper Coated Steel Wire for Air Duct supplier 0.062 inch 0.080 inch 0.135 inch Bronze / Copper Coated Steel Wire for Air Duct supplier

Large Image :  0.062 inch 0.080 inch 0.135 inch Bronze / Copper Coated Steel Wire for Air Duct

Product Details:

Place of Origin: China
Brand Name: Gangda
Model Number: GD-11-06

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne
Packaging Details: Z2, Steel reel
Delivery Time: 15 - 20 days
Supply Ability: 1000 tonnes per Month
Contact Now
Detailed Product Description
Application: Air Ducting Surface Finish: Bronze Coated
Steel Garde: Wire Rod C1070 C1080 Packaging: Z2, Steel Reel
Diameter: 0.062" 0.080" 0.106" 0.135"

High Carbon Bronze Spring Wire for Air Duct  Diameter 0.062 inch 0.080 inch 0.106inch 0.135 inch



GHUANGHUA -  air duct wire specialist



Specifications



Diameter: 0.062"  0.080"  0.106"  0.135"
Diameter Tolerance: +/- 0.001"
Surface Finishes: Copper coated
Tensile Strength:  0.062"   T/S  237,000 - 272,000 PSI
                             0.080"   T/S  227,000 - 261,000 PSI
                             0.106"   T/S  216,000 - 247,000 PSI
                             0.135"   T/S  206,000 - 237,000 PSI
Steel Grade: High Carbon Steel  C1070  C1080

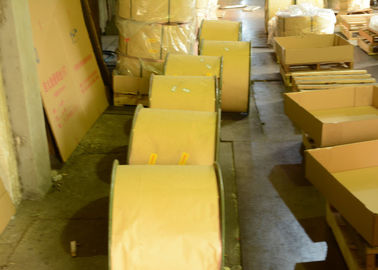

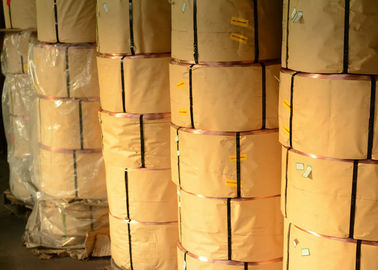

Packaging

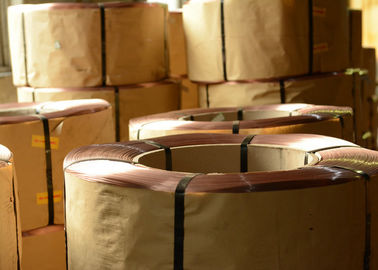

1)  900lbs +/- 45kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
          ID: 14" Min.
         OD: 29" Max.
         Wire reel Width: 11"

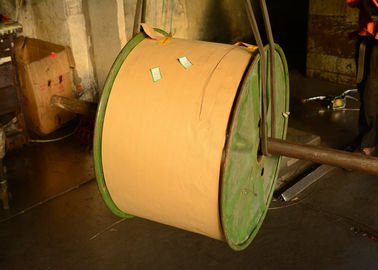

2)  900 per steel reel. 1 reel or 2 reels on one pallets
          Flange diameter: 760mm
          Traverse length: 280mm
          Barrel diameter: 354 mm
          Height of reel: 320mm



Standard



as per client’s specification



Description



High Carbon Bronze Spring Wire are manufactured from quality middle or high carbon wire rods, with superior surface coating and are used for manufacture of air ducting.



Applications



Air ducting



Competitive Advantage



Excellent surface coating
Trouble-free forming
Trouble-free pay off
