Tensile strength 1900 to 2400Mpa High Tensile Spring Steel Wire Diameter 0.50mm to 1.80mm
Diameter: 0.60mm – 1.80mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1900 – 2400 Mpa.
Finish: Bright dry drawn and phosphatized
Steel Grade: rod grade 1070 – rod grade 1085 HIGH CARBON steel

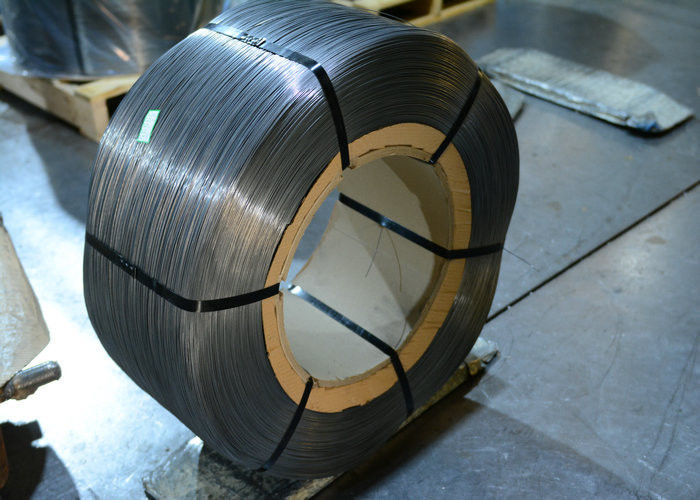

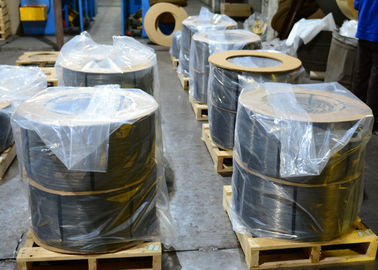

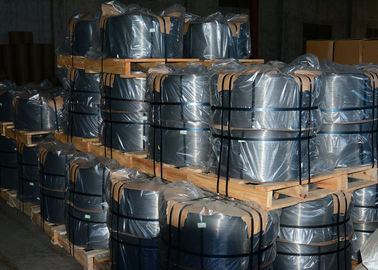

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
Standard: A679/A 679M etc.
GUANGHUA High Tensile Steel Wire is cold drawn uncoated high carbon spring wire, suitable for the manufacture of mechanical springs and wire forms subject to high static stresses.
General purpose torsion, extension and compression spring
Consistent high quality steel wires for efficient manufacture of A series of wire products
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off and forming
