T / S 1750 to 2300 Mpa Tire Bead Wire Diameter 0.78mm to 1.50mm Z2 pack Air duct
1. Diameter: 0.78 0.90mm 1.00mm 1.10mm 1.20mm 1.26mm 1.50mm
Diameter Tolerance: +/- 0.02mm
2. Finishes: Bronze coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength: 1750 – 2300 Mpa
5. Steel Grade: High Carbon Steel C1065 C1070 C1072 C1080

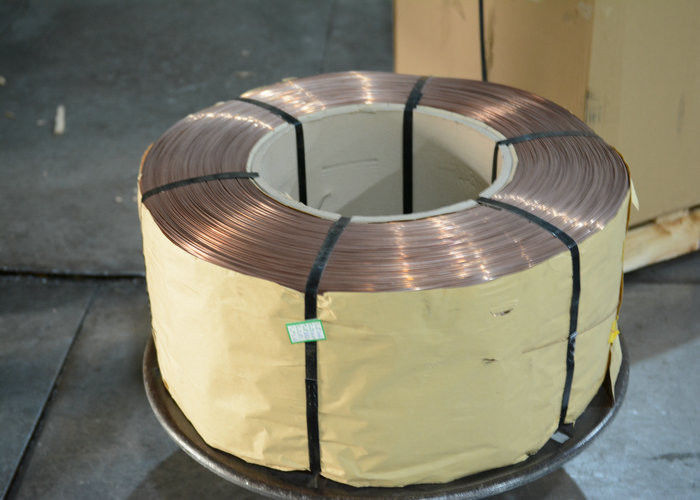

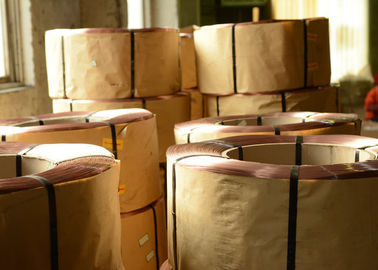

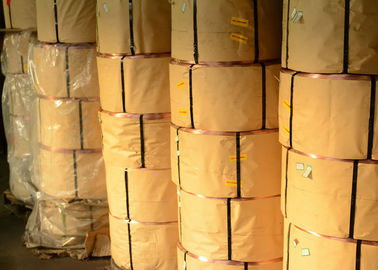

6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
ID: 355mm Min.
OD: 720mm Max.
Wire reel Width: 280mm
7. Standard: GB14450-2004 or as per client’s specification
Bead Wires are manufactured from quality high carbon wire rods, with superior surface coating and are used for the reinforcement of all sorts of reliable hose & duct.
Excellent surface coating
High dimensional accuracy
Trouble-free pay off
