T / S 1100Mpa - 2300MPa Copper Coated Steel Wire Diameter 1.00 – 4.50mm Quality tensile and Coating
Specifications
Diameter: 1.00mm – 4.50mm
Diameter Tolerance: +/- 0.02mm or +/-0.03mm
Surface Finishes: Copper coating
Tensile Strength: 1100 – 2300 Mpa
Steel Grade: High Carbon Steel C1045 - C1080
Packaging

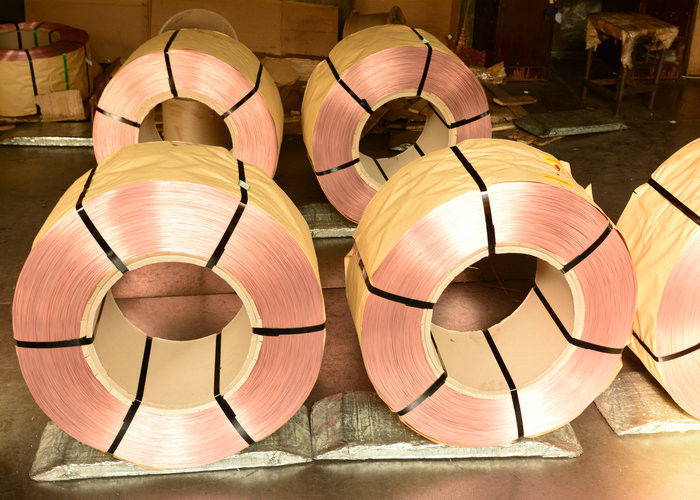

1) 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
ID: 355mm Min.
OD: 720mm Max.
Wire reel Width: 280mm

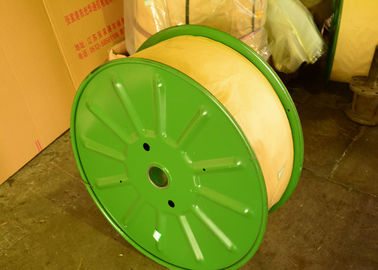

2) 400kgs per steel reel. 1 reel or 2 reels on one pallets
Flange diameter: 760mm
Traverse length: 280mm
Barrel diameter: 354 mm
Height of reel: 320mm
Standard
GB14450-2004 or as per client’s specification
Description
GUANGHUA is one of the earliest manufacture of copper coated Steel Wires in China, manufactured from quality middle or high carbon wire rods, with superior surface coating and are used as brush wire, cleaning product wire, bedding & seating wire.
Applications
Duct and hose
Pipe
Brush wire
Cleaning product wire
Bedding & seating wire.
Competitive Advantage
Consistent high quality steel wires
Excellent surface coating
Trouble-free forming
Trouble-free pay off
