High Carbon Air ducting Copper Coated Steel Wire 0.080" 0.106" 0.135"

Large Image : High Carbon Air ducting Copper Coated Steel Wire 0.080" 0.106" 0.135"

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-11-05

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z2, Steel reel
Delivery Time:	15 - 20 days
Supply Ability:	1000 tonnes per Month

Contact Now

Detailed Product Description

Application:	Air Ducting	Surface Finish:	Bronze Coated
Steel Garde:	Wire Rod C1070 C1080	Packaging:	Z2, Steel Reel
High Light:	carbon steel wire , hard steel wire

Application:

Air Ducting

Surface Finish:

Bronze Coated

Steel Garde:

Wire Rod C1070 C1080

Packaging:

Z2, Steel Reel

High Light:

carbon steel wire

hard steel wire

0.062" 0.080" 0.106" 0.135" High Carbon Bronze Spring Wire Z2 Pack Steel Reel

Specifications

Diameter: 0.062" 0.080" 0.106" 0.135"

Diameter Tolerance: +/- 0.001"

Surface Finishes: Copper coated

Tensile Strength: 0.062" T/S 237,000 - 272,000 PSI

0.080" T/S 227,000 - 261,000 PSI

0.106" T/S 216,000 - 247,000 PSI

0.135" T/S 206,000 - 237,000 PSI

Steel Grade: High Carbon Steel C1070 C1080

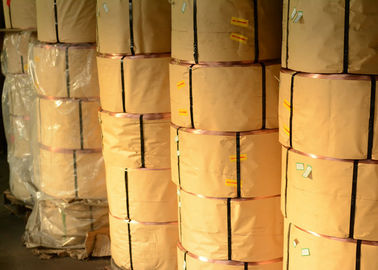

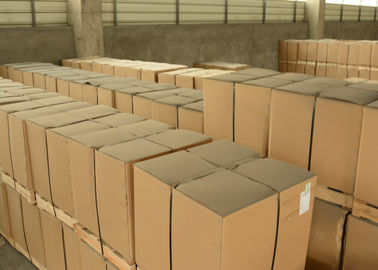

Packaging

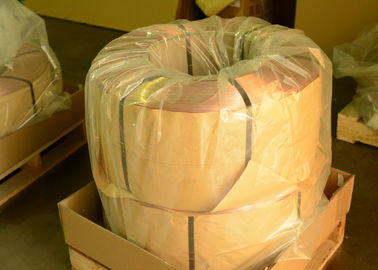

1) 900lbs +/- 45kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.

ID: 14" Min.

OD: 29" Max.

Wire reel Width: 11"

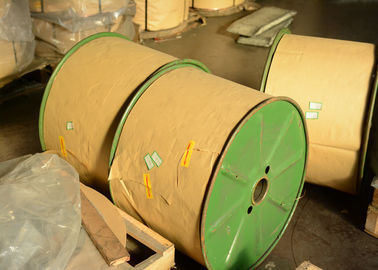

2) 900 per steel reel. 1 reel or 2 reels on one pallets

Flange diameter: 760mm

Traverse length: 280mm

Barrel diameter: 354 mm

Height of reel: 320mm

Standard

as per client’s specification

Description

Bronze Coated Steel Wires are manufactured from quality middle or high carbon wire rods, with superior surface coating and are used as reinforcing of wire duct and hose.

Applications

Air ducting

Competitive Advantage

Excellent surface coating

Trouble-free forming

Trouble-free pay off
