1100mpa – 2300 MPa Copper coated steel wire , High Tensile Strength Wire

Large Image : 1100mpa – 2300 MPa Copper coated steel wire , High Tensile Strength Wire

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-11-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z2, Steel reel
Delivery Time:	15 - 20 days
Supply Ability:	1000 tonnes per Month

Contact Now

Detailed Product Description

Application:	Duct ,Hose, Pipe, Seating, Cut Wire Shot, Brush	Surface Finish:	Copper
Steel Garde:	Wire Rod C1045 - C1085	Packaging:	Z2, Steel Reel
High Light:	carbon steel wire , Spring Steel Wire

Application:

Duct ,Hose, Pipe, Seating, Cut Wire Shot, Brush

Surface Finish:

Copper

Steel Garde:

Wire Rod C1045 - C1085

Packaging:

Z2, Steel Reel

High Light:

carbon steel wire

Spring Steel Wire

Copper coated steel wire Diameter 1.00 – 4.50mm Tensile Strength: 1100mpa – 2300 MPa Z2 Packs, Steel reels

Specifications

Diameter: 1.00mm – 4.50mm

Diameter Tolerance: +/- 0.02mm or +/-0.03mm

Surface Finishes: Copper coating

Tensile Strength: 1100 – 2300 Mpa

Steel Grade: High Carbon Steel C1045 - C1080

Packaging

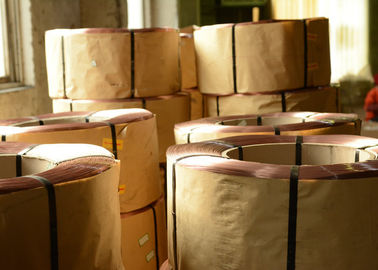

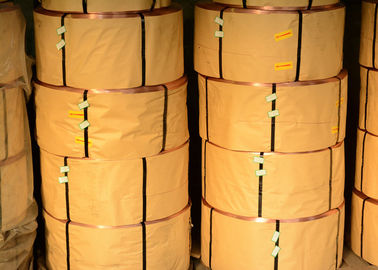

1) 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.

ID: 355mm Min.

OD: 720mm Max.

Wire reel Width: 280mm

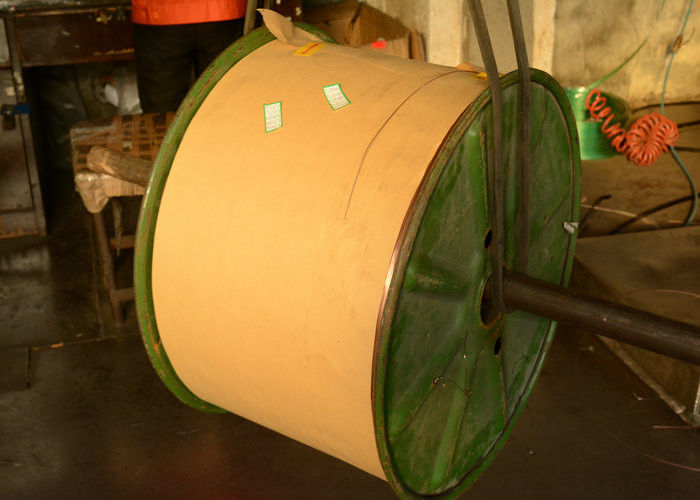

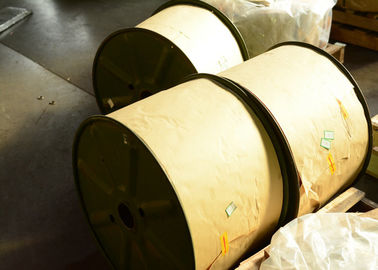

2) 400kgs per steel reel. 1 reel or 2 reels on one pallets

Flange diameter: 760mm

Traverse length: 280mm

Barrel diameter: 354 mm

Height of reel: 320mm

Standard

GB14450-2004 or as per client’s specification

Description

Copper Coated Steel Wires are manufactured from quality middle or high carbon wire rods, with superior surface coating and are used as brush wire, cleaning product wire, bedding & seating wire.

Applications

Duct and hose

Pipe

Brush wire

Cleaning product wire

Competitive Advantage

Excellent surface coating

Trouble-free forming

Trouble-free pay off
