45# 50# 50# 60# 65# 70# SWRH72A 77A 82A High Carbon Hard Drawn Steel Wire Diameter 0.60mm to 3.70mm
Specifications:
Diameter: 0.60mm – 3.70mm
Diameter Tolerance: +/- 0.02mm or 0.03mm
Tensile Strength: 1200 – 2400 Mpa.
Surface Finish: Bright dry drawn and phosphatized
Bright dry drawn and grey
Phosphate washed
Steel Grade: rod grade 1045 – rod grade 1085 HIGH CARBON steel

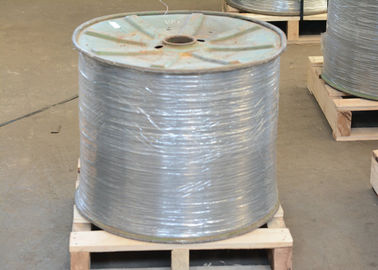

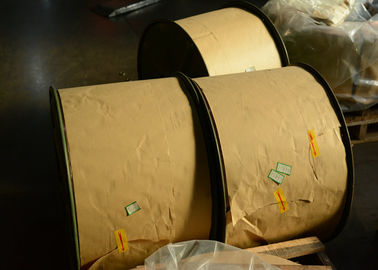

Package: 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 or 3
420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
Z3 Pack

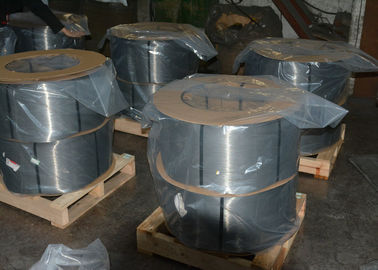

Coils
Standard: DIN 17223 ASTM A227 JISG 3521 EN10270 etc.
Description:
This wire is cold drawn round carbon steel wire, a wide variety of manufacture of mechanical spring, wire froms, wire shot etc.
Applications:
General purpose torsion, extension and compression spring
Spring washers
Wire spring
mattress
ducting
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of springs
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off and forming
