High Carbon Spring Steel Wire Dia. 0.70mm - 2.50mm T / S 1300 - 2400Mpa

GUANGHUA is a very professional company. I am very happy to cooperate with them. I am always content with their efficient delivery.

—— Mr Brown

They will always keep their words, and always put customer's benefit on first consideration, that's why we chose them as a long-term business partner!

—— Mr.Thomas BIttig

Thanks for your good quality product and excellent service, we will come back again!

—— Amarjit Singh

I'm Online Chat Now

High Carbon Spring Steel Wire Dia. 0.70mm - 2.50mm T / S 1300 - 2400Mpa

China High Carbon Spring Steel Wire  Dia. 0.70mm - 2.50mm T / S 1300 - 2400Mpa supplier
High Carbon Spring Steel Wire  Dia. 0.70mm - 2.50mm T / S 1300 - 2400Mpa supplier High Carbon Spring Steel Wire  Dia. 0.70mm - 2.50mm T / S 1300 - 2400Mpa supplier High Carbon Spring Steel Wire  Dia. 0.70mm - 2.50mm T / S 1300 - 2400Mpa supplier High Carbon Spring Steel Wire  Dia. 0.70mm - 2.50mm T / S 1300 - 2400Mpa supplier

Large Image :  High Carbon Spring Steel Wire Dia. 0.70mm - 2.50mm T / S 1300 - 2400Mpa

Product Details:

Place of Origin: China
Brand Name: GangDa
Model Number: GD-02-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne
Packaging Details: 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 coils/ Pallets
Delivery Time: 20 work days
Supply Ability: 1600 tonnes per month
Contact Now
Detailed Product Description
Steel Grade: High Carbon Steel Size Range: 0.60 - 2.50mm
Pack: Z-2 Pack , Z-3 Pack Finishes: Phosphate Or Copper Washed, Electto-galvanised
Standard: BS 5216 DIN 17223 EN10270 Application: Spring And Mechanical Component Manufacture

High Carbon Steel Spring Wire  Dia. 0.70mm to 2.50mm T / S 1300 - 2400Mpa



Specifications:

Diameter: 0.60mm – 2.50mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1300 – 2400 Mpa.
Surface Finish: Bright dry drawn and phosphatized
                         Copper washed
                         Phosphate washed
                         Galanised
Steel Grade: rod grade 1045 – rod grade 1085 HIGH CARBON steel

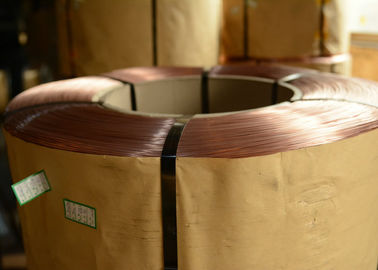

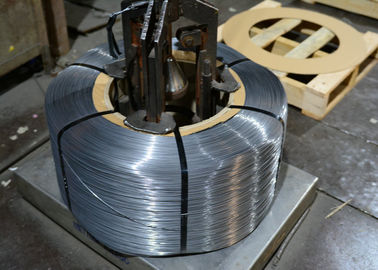

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
                ID: 355mm ( 14”)  Min.
                OD: 737mm (29”) Max.
                Wire reel Width: 280 mm (11”)
Standard: DIN 17223   ASTM A227   JISG 3521  EN10270  etc.

Description:

High carbon steel Spring  Wire is patented cold drawn round carbon steel wire, normally used for helical spring (  tension, compression and torsion springs ), spring washers and other wire spring.

Applications:

General purpose torsion, extension and compression spring
Spring washers
Wire spring
ducting

Competitive Advantage:

Consistent high quality steel wires for efficient manufacture of springs
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off and forming
