T / S 1750 - 2300 Mpa High Carbon Steel Wire / Tire Bead Wire Z2 pack Air duct

Large Image : T / S 1750 - 2300 Mpa High Carbon Steel Wire / Tire Bead Wire Z2 pack Air duct

Product Details:

Place of Origin:	China
Brand Name:	GangDa
Model Number:	GD-02-04

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z-2 Pack Stee reel
Delivery Time:	20 work days
Supply Ability:	1500 tonnes per month

Contact Now

Detailed Product Description

Steel Grade:	High Carbon Steel	Finishes:	Bright / Uncoated
Pack:	Z-2 Pack Or Steel Reel	Standard:	DIN 17223 EN10270
Application:	Air Duct
High Light:	high carbon wire rod , bright steel wire

T / S 1750 to 2300 Mpa Tire Bead Wire Diameter 0.78mm to 1.50mm Z2 pack Air duct

GHUANGHUA - AIR DUCT WIRE SPECIALIST

Specifications:

Diameter: 0.90 – 1.60mm

Diameter Tolerance: +/- 0.02mm

Tensile Strength: 1750 – 2300 Mpa.

Surface Finish: Phosphatized and Bright dry drawn

Steel Grade: C1070

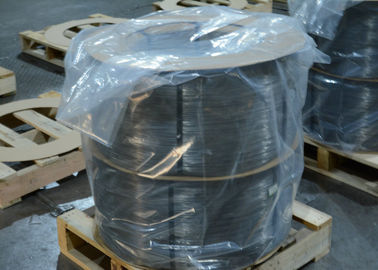

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.

ID: 355mm ( 14”) Min.

OD: 737mm (29”) Max.

Wire reel Width: 280 mm (11”)

Standard: DIN 17223 JISG 3521.

Description:

High carbon Spring Steel Wire is patented cold drawn round carbon steel wire, used for helical spring of air duct

Applications:

air duct

Competitive Advantage:

Consistent high quality steel wires for efficient manufacture of springs

Clean wire surface

Trouble-free pay off and forming
