DIN 17223 70# High Carbon Steel Wire Rod for Spring , Air duct , Hose

Large Image : DIN 17223 70# High Carbon Steel Wire Rod for Spring , Air duct , Hose

Product Details:

Place of Origin:	China
Brand Name:	GangDa
Model Number:	GD-02-17

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z-2 Pack Stee reel
Delivery Time:	20 work days
Supply Ability:	1500 tonnes per month

Contact Now

Detailed Product Description

Steel Grade:	70# High Carbon Steel Wire Rod	Finishes:	Bright / Uncoated
Pack:	Steel Reel	Standard:	DIN 17223 EN10270
Application:	Air Duct & Hose	Size Range:	0.90mm - 1.60mm
High Light:	high carbon wire rod , High Tensile Steel Wire

DIN 17223 High Carbon Spring Steel Wire Diameter 0.90 - 1.60mm T/ S 1750 - 2300Mpa On Stee Reel

Specifications:

Diameter: 0.90 – 1.60mm

Diameter Tolerance: +/- 0.02mm

Tensile Strength: 1750 – 2300 Mpa.

Surface Finish: Phosphatized and Bright dry drawn

Steel Grade: C1070

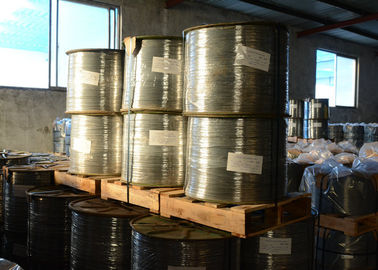

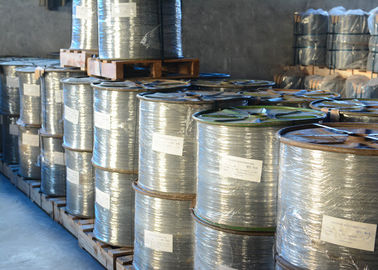

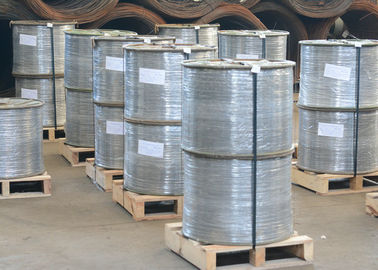

Package: 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets

Flange diameter: 630mm

Traverse length: 400mm

Barrel diameter: 360 mm

Height of reel: 475mm

Standard: DIN 17223

Description:

High carbon Spring Steel Wire is produced according to Standard DIN 17223, mainly act as the reinforcement of air duct.

Applications:

air duct

Competitive Advantage:

Consistent high quality steel wires for efficient manufacture of springs

Clean wire surface

Trouble-free pay off and forming

Tag:

welding wire,

high carbon wire rod,

High Tensile Steel Wire
