Phosphate , copper washed , electro - galvanised industrial steel wire

China Phosphate , copper washed , electro - galvanised industrial steel wire supplier
Phosphate , copper washed , electro - galvanised industrial steel wire supplier Phosphate , copper washed , electro - galvanised industrial steel wire supplier Phosphate , copper washed , electro - galvanised industrial steel wire supplier Phosphate , copper washed , electro - galvanised industrial steel wire supplier

Large Image :  Phosphate , copper washed , electro - galvanised industrial steel wire

Product Details:

Place of Origin: China
Brand Name: GangDa
Model Number: GD-02-02

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne

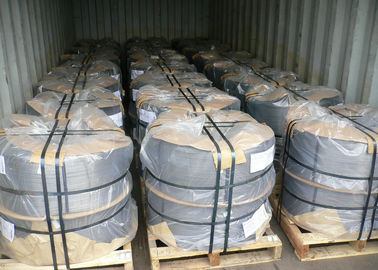

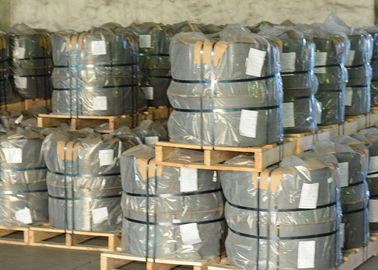

Packaging Details: 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 coils/ Pallets
Delivery Time: 20 work days
Supply Ability: 1600 tonnes per month
Contact Now
Detailed Product Description
Steel Grade: High Carbon Steel C1045 - C1085 Dia. Range: 0.60 - 2.50mm
Pack: Z-2 Pack , Z-3 Pack Finishes: Phosphate Or Copper Washed, Electro - Galvanised
Standard: BS 5216 DIN 17223 EN10270 Application: Spring And Mechanical Component Manufacture

EN10270 High Carbon Steel Spring Wire  Dia. 0.70mm to 2.50mm T / S 1300 - 2400Mpa



Specifications:

Diameter: 0.60mm – 2.50mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1300 – 2400 Mpa.
Surface Finish: Bright dry drawn and phosphatized
                         Copper washed
                         Phosphate washed
                         Galanised
Steel Grade: Carbon wire  rods 1045

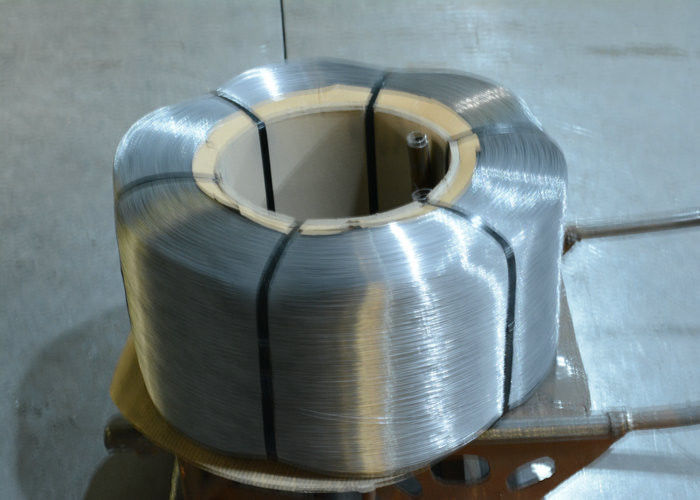

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
                ID: 355mm ( 14”)  Min.
                OD: 737mm (29”) Max.
                Wire reel Width: 280 mm (11”)
Standard: DIN 17223   ASTM A227   JISG 3521  EN10270  etc.

Description:

The High carbon steel Spring  Wire from GUANGHUA  is patented hard-drawn round carbon steel wire, normally used for helical spring , spring washers and other wire spring etc.

Applications:

General purpose torsion, extension and compression spring
Spring washers
Wire spring
ducting

Competitive Advantage:

Consistent high quality steel wires for efficient manufacture of springs
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off and forming
