Specifications:
Diameter: 0.60mm – 4.00mm
Diameter Tolerance: +/- 0.02mm or 0.03mm
Tensile Strength: 1200 – 2400 Mpa.
Surface Finish: Bright dry drawn and phosphatized
Bright dry drawn and grey
Phosphate washed

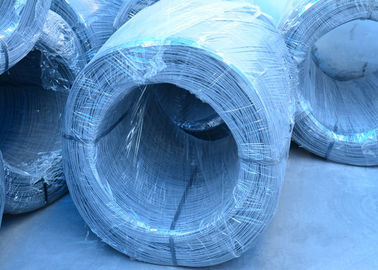

Galvanised
Steel Grade: rod grade 1045 – rod grade 1085 HIGH CARBON steel

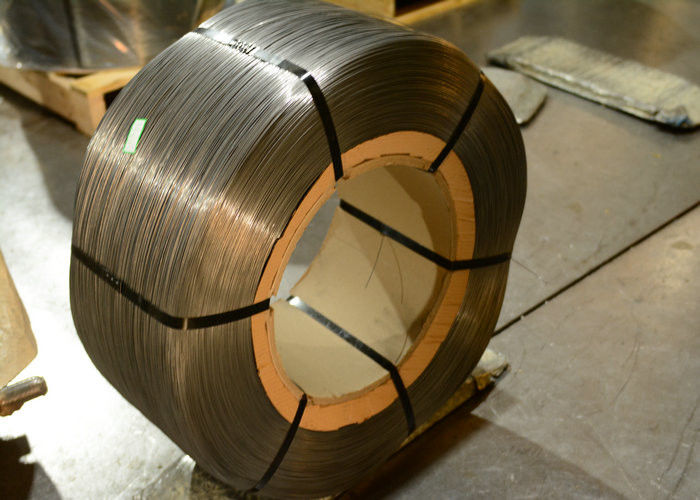

Package: 1) 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 or 3
coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)

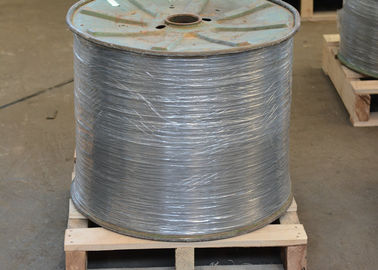

2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
Flange diameter: 630mm
Traverse length: 400mm
Barrel diameter: 360 mm
Height of reel: 475mm
Standard: DIN 17223 ASTM A227 JISG 3521 EN10270 etc.
Description:
GHUANGHUA is one of leading high carbon steel wire manufactures in China, we may produce 0.50mm - 4.00mm high carbon steel wire on Z2 Coil , Z3 Coil and Steel spool. our annual production cappacity for these wires is more than 25,000 MTS.
Applications:
General purpose torsion, extension and compression spring
Spring washers
Wire spring
mattress
ducting
etc
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of springs
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off and forming
Strict raw material selection
