Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Carbon Bright Spring Steel Wire | Diameter: | 0.60mm – 2.50mm |
|---|---|---|---|
| Standard: | DIN 17223 EN10270 | Application: | General Purpose Torsion, Extension And Compression Spring |
| Tensile Strength: | 1200 - 2400 Mpa | Surface Finish: | Bright Dry Drawn And Phosphatized |
| High Light: | high carbon wire rod,bright steel wire |
||
Bright dry drawn and phosphatized High Carbon Steel Wire for Spring washers
Specifications:
Diameter: 0.60mm – 2.50mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1200 – 2400 Mpa.
Surface Finish: Bright dry drawn and phosphatized
Bright dry drawn and grey
Phosphate washed
Steel Grade: rod grade 1045 – rod grade 1085 HIGH CARBON steel

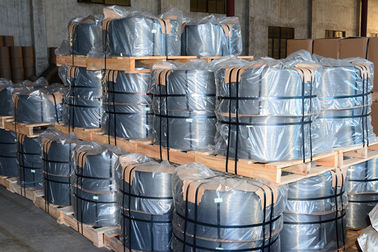

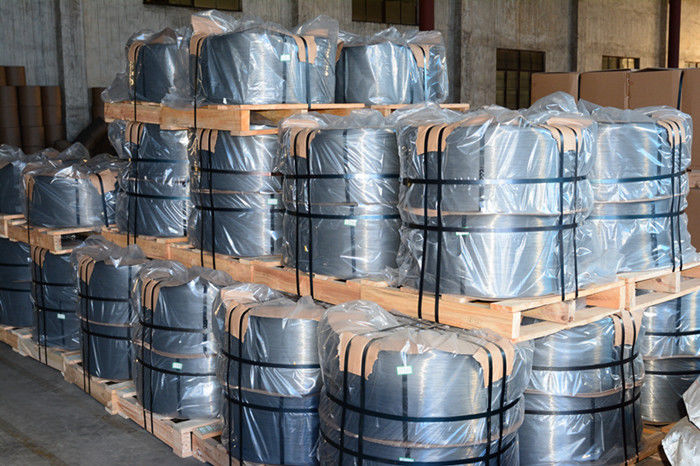

Package: 1) 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 or 3
coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
Flange diameter: 630mm
Traverse length: 400mm
Barrel diameter: 360 mm
Height of reel: 475mm
Standard: DIN 17223 ASTM A227 JISG 3521 EN10270 etc.
Description:
This wire is patented cold drawn round carbon steel wire, normally used for helical spring ( tension,
compression and torsion springs ), spring washers and other wire spring.
Applications:
General purpose torsion, extension and compression spring
Spring washers
Wire spring
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of springs
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off and forming
