Rod Grade C1045 - C1085 Carbon Spring Steel Wire Bright / Uncoated Surface

Large Image : Rod Grade C1045 - C1085 Carbon Spring Steel Wire Bright / Uncoated Surface

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-05-08

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z2, Z3, Spool, Strapped Coil
Delivery Time:	10 -20 days

Contact Now

Detailed Product Description

Standard:	ASTM A 227/ A 227M - 1999	Steel Garde:	Rod Grade C1045 - C1085 Carbon Steel
Surface:	Bright / Uncoated	Finishes:	Phosphate
Size Range:	0.50mm - 4.00mm	Packaging:	Z2, Z3, Spool, Strapped Coil
Application:	Spring	Process:	Cold Drawn
High Light:	carbon steel wire , Tyre Bead Wire

Product: Rod Grade C1045 - C1085 Carbon Steel Spring Wire ASTM A 227/ A 227M

Description:

GUANGHUA A leading manufacturer of Hgh Carbon Spring Steel Wire in China, we have strict raw material selection and highly controlled processing yield, our wire products suit to applications where fatigue life and resistance to relaxation are critical.

1. Surface: Without coating

2. Standard: ASTM A 227/ A 227 M - 1999

3. Diameter and Tensile Strength

Tensile Requirements, SL Units

Diameter mm	Class I		Class II
	Tensile Strength, MPa		Tensile Strength, MPa
	min	max	min	max
0.50	1960	2240	2240	2520
0.55	1940	2220	2220	2500
0.60	1920	2200	2200	2480
0.70	1900	2180	2180	2460
0.80	1870	2140	2140	2410
0.90	1830	2100	2100	2370
1.00	1800	2070	2070	2340
1.10	1770	2040	2040	2310
1.20	1740	2000	2000	2260
1.40	1720	1980	1980	2240
1.60	1670	1930	1930	2180
1.80	1640	1880	1880	2120
2.00	1600	1840	1840	2080
2.20	1580	1810	1810	2040
2.20	1550	1780	1780	2010
2.50	1510	1730	1730	1960
2.80	1480	1700	1700	1920
3.00	1460	1680	1680	1900
3.50	1420	1630	1630	1840
4.00	1380	1590	1590	1800

4. Raw Material: Quality carbon steel wire rod C1045 - C1085

Chemical Requirements

Element	Composition, %
Carbon	0.45 – 0.85
Manganese	0.30 – 1.30
Phosphorus, max	0.040
Sulfur, max	0.050
Silicon	0.15 – 0.35

4. Cast : As per client’s request

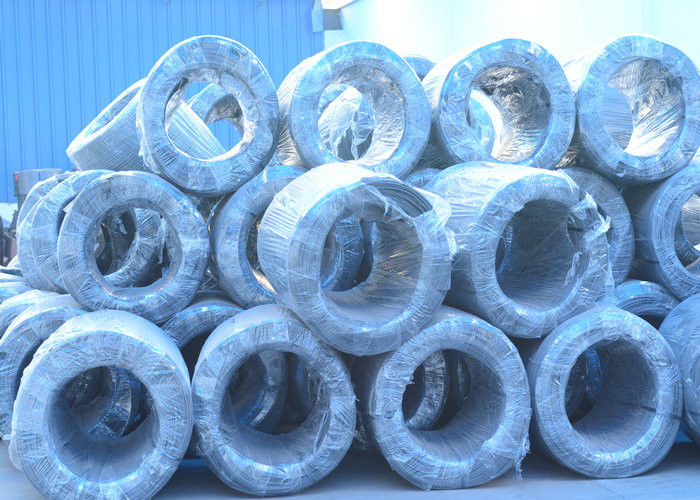

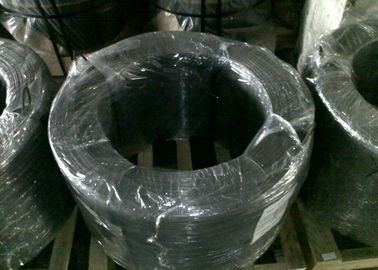

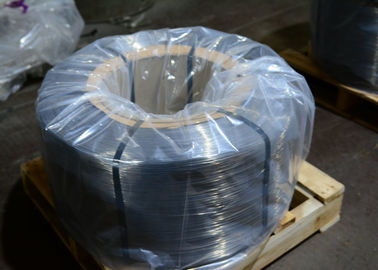

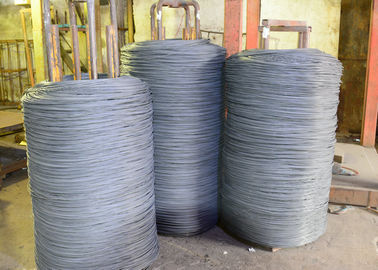

Packaging

Z2 coils with paper core
Z3 coils with paper core
Strapped Coils
Former

Application

Spring and mechanical componnent manufacture

garage door spring
general purpose torsion, extension and
compression spring

Advantage

Consistent tensile strength
Wire free of defects
Clear surface
Trouble- free pay off
Srict raw material selection
