Product Details:
Payment & Shipping Terms:
|
Size Range: | 0.60mm - 4.25mm | Surface Finish: | Bright Dry Drawn And Phosphatized |
---|---|---|---|

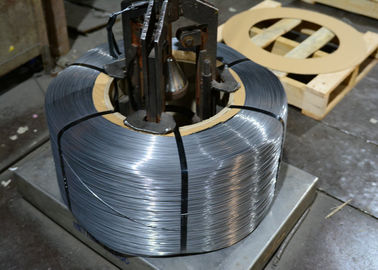

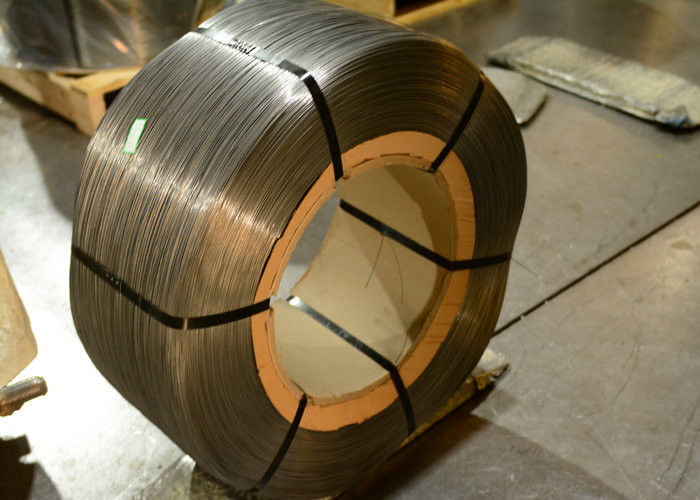

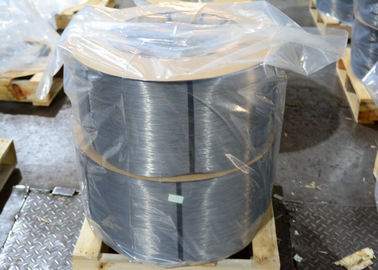

Process: | Patented And Cold Drawn | Packaging: | Z2 Coil With Paper Core |
Standard: | DIN 17223 | Usage: | Helical Spring, Spring Washers, Other Springs |
High Light: | industrial steel wire,Tyre Bead Wire |
1. Mechanical properties
Diameter mm |
Tensile Strength N/mm2 |
Diameter mm |
Tensile Strength N/mm2 |
||
Class A |
Class B |
Class A |
Class B |
||
0.6 |
- |
2140 ~ 2400 |
1.7 |
1570 ~ 1800 |
1810 ~ 2030 |
0.63 |
- |
2130 ~ 2380 |
1.8 |
1550 ~ 1780 |
1790 ~ 2010 |
0.65 |
- |
2120 ~ 2370 |
1.9 |
1540 ~ 1760 |
1770 ~ 1990 |
0.7 |
- |
2090 ~ 2350 |
2 |
1520 ~ 1750 |
1760 ~ 1970 |
0.75 |
- |
2070 ~ 2320 |
2.1 |
1510 ~ 1730 |
1740 ~ 1960 |
0.8 |
- |
2050 ~ 2300 |
2.25 |
1490 ~ 1710 |
1720 ~ 1930 |
0.85 |
- |
2030 ~ 2280 |
2.4 |
1470 ~ 1690 |
1700 ~ 1910 |
0.9 |
- |
2010 ~ 2260 |
2.5 |
1460 ~ 1680 |
1690 ~ 1890 |
0.95 |
- |
2000 ~ 2240 |
2.6 |
1450 ~ 1660 |
1670 ~ 1880 |
1 |
1720 ~ 1970 |
1980 ~ 2220 |
2.8 |
1420 ~ 1640 |
1650 ~ 1850 |
1.05 |
1710 ~ 1950 |
1960 ~ 2200 |
3 |
1410 ~ 1620 |
1630 ~ 1830 |
1.1 |
1690 ~ 1940 |
1950 ~ 2190 |
3.2 |
1390 ~ 1600 |
1610 ~ 1810 |
1.2 |
1670 ~ 1910 |
1920 ~ 2160 |
3.4 |
1370 ~ 1580 |
1590 ~ 1780 |
1.25 |
1660 ~ 1900 |
1910 ~ 2140 |
3.6 |
1350 ~ 1560 |
1570 ~ 1760 |
1.3 |
1640 ~ 1890 |
1900 ~ 2130 |
3.8 |
1340 ~ 1540 |
1550 ~ 1740 |
1.4 |
1620 ~ 1860 |
1870 ~ 2100 |
4 |
1320 ~ 1520 |
1530 ~ 1730 |
1.5 |
1600 ~ 1840 |
1850 ~ 2080 |
4.25 |
1310 ~ 1500 |
1510 ~ 1700 |
2 |
1520 ~ 1750 |
1760 ~ 1970 |
|
|
|
2. Chemical Requirements
Chemical Requirements
Element |
Composition, % |
Carbon |
0.45 – 0.85 |
Manganese |
0.30 – 1.00 |
Phosphorus, max |
0.040 |
Sulfur, max |
0.050 |
Silicon |
0.020 |
3. Cast
As per client’s request
GUANGHUA - a leading high carbon steel spring wire manufacturer and exporter. as per DIN 17223, we aways supply our clients quality patented cold drawn steel wires with consistent tensile strength, excellent surface for spring products manufacture.
