High Strength 0.60 - 3.0mm Copper Plated Steel Wire for Air Duct and Hose

GUANGHUA is a very professional company. I am very happy to cooperate with them. I am always content with their efficient delivery.

—— Mr Brown

They will always keep their words, and always put customer's benefit on first consideration, that's why we chose them as a long-term business partner!

—— Mr.Thomas BIttig

Thanks for your good quality product and excellent service, we will come back again!

—— Amarjit Singh

I'm Online Chat Now

High Strength 0.60 - 3.0mm Copper Plated Steel Wire for Air Duct and Hose

China High Strength 0.60 - 3.0mm Copper Plated Steel Wire for Air Duct and Hose supplier
High Strength 0.60 - 3.0mm Copper Plated Steel Wire for Air Duct and Hose supplier High Strength 0.60 - 3.0mm Copper Plated Steel Wire for Air Duct and Hose supplier High Strength 0.60 - 3.0mm Copper Plated Steel Wire for Air Duct and Hose supplier High Strength 0.60 - 3.0mm Copper Plated Steel Wire for Air Duct and Hose supplier

Large Image :  High Strength 0.60 - 3.0mm Copper Plated Steel Wire for Air Duct and Hose

Product Details:

Place of Origin: China
Brand Name: GANGDA
Model Number: GD- 01-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 Tonne
Packaging Details: 400 kgs with Spooless cores Z-2 Packs, 2 or 3 Coills in one Pallet, 24 Pallets per 20" Container, 20 to 25 tonners per 20" Container
Delivery Time: 20 days
Supply Ability: 1000 tonners per month
Contact Now
Detailed Product Description
Application: Air Duct And Hose, PE Pipe Finshes: Copper Plated
Steel Grade: High Carbon Steel Packaging: Z2 - Pack
Standard: GB14450-2003
High Light:

tire bead wire

,

spring steel wire

Z2  Pack Copper Plated Bead Wire Diameter  0.60 to 3.0mm  Tensile Strength 1500 to 2300 Mpa



Specifications

1.Diameter:  a. 0.60mm 0.70mm 0.78/0.80mm 0.89/0.90mm 1.00mm                                                                              1.10mm1.20mm 1.26mm1.30mm
                       b. 1.50mm 1.65mm 1.80mm 2.00mm 2.20mm 2.30mm
                       c.  2.80mm 3.00mm 3.10mm 3.20mm 3.30mm 3.50mm
                      Diameter Tolerance: +/- 0.02mm or +/-0.03mm
2.Surface Finishes: Copper coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength:  a. 1750 – 2300 Mpa
                                   b. 1500 – 1900 Mpa
                                   c.  as per client's request
5. Steel Grade: High Carbon Steel  C1065  C1070  C1072  C1080

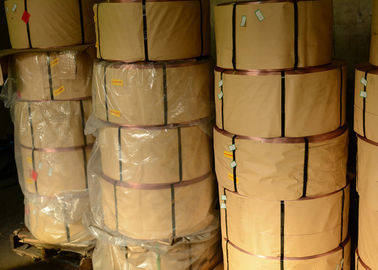

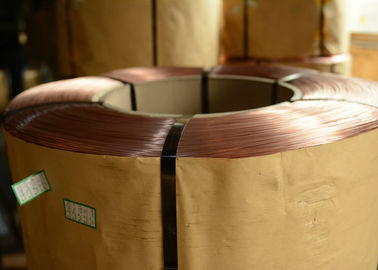

6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
                    ID: 355mm Min.
                    D: 720mm Max.
                    Wire reel Width: 280mm
7. Standard: GB14450-2004 or as per client’s specification


Description:

Copper Coated Bead Wire is tempered round steel wire with superior surface coating and are used for the reinforcement of all sorts of reliable hose, duct and pipe.


Applications:

Armoured hoses
Flexible ducting
Hose reinforcing
Pipe


Competitive Advantage:

Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
