Tyre Bead Wire Diameter 0.60 - 2.0mm Tensile Strength 1750 – 2300 Mpa Z2 Packs
Specifications:
Diameter: 0.60mm 0.70mm 0.78/0.80mm 0.89/0.90mm 1.00mm 1.10mm 1.20mm 1.26mm 1.30mm 1.50mm 1.60mm 1.80mm 2.0mm
1. Diameter Tolerance: +/- 0.02mm or +/-0.03mm
2. Finishes: Bronze coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength: a. 1750 – 2300 Mpa
5. Steel Grade: High Carbon Steel C1070

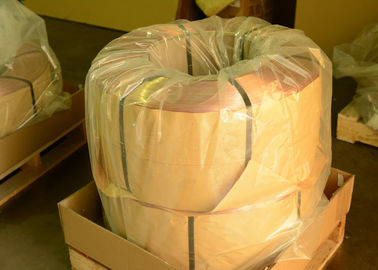

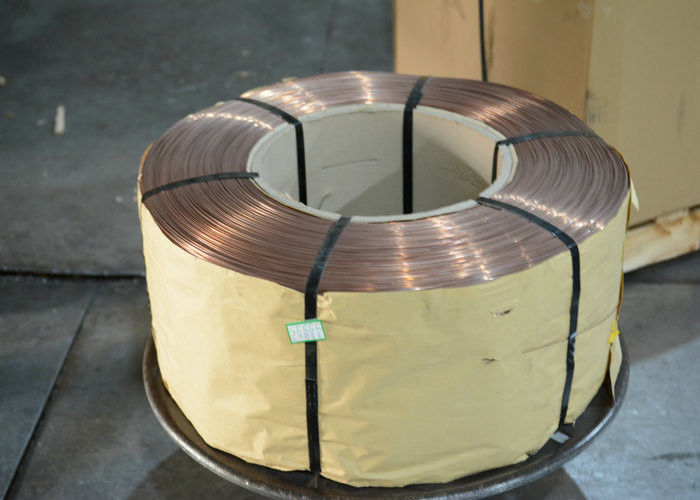

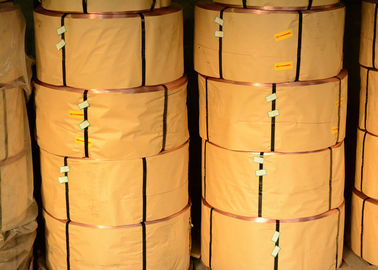

6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
ID: 355mm Min.
OD: 720mm Max.
Wire reel Width: 280mm
7. Standard: GB14450-2004 or as per client’s specification
Description:
Tyre Bead Wires are manufactured from quality high carbon wire rods, with superior surface coating and are used for the reinforcement of all sorts of reliable hose, duct and pipe.
Applications:
Armoured hoses
Flexible ducting
Hose reinforcing
Pipe
Competitive Advantage:
Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
