Dry drawn Hot Dipped Galvanised High Tensile Steel Wire 1750 - 2100 Mpa

Large Image : Dry drawn Hot Dipped Galvanised High Tensile Steel Wire 1750 - 2100 Mpa

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GH-04-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	400kgs Coils in Z-2 Pack
Delivery Time:	20 days
Supply Ability:	200 tonnes per Month

Contact Now

Detailed Product Description

Usage:	For Hose Duct Pipe	Diameter:	0.90mm 1.00mm 1.10mm 1.30mm
Surface Finish:	Hot Dipped Zinc Coating	Zinc Coating Weight:	More Than 94g/m3
Packaging:	400kgs With Spooless Cores In Z-2 Pack	Process:	Dry Drawn
High Light:	high carbon spring steel wire , hard drawn spring wire

Packed in Z2 Coil High Tensile Hot Dipped Galvanised Steel Wire for Duct Hose Pipe Zinc Coating Weight 95 g/m2

GUANGHUA - Duct Wire Expert

Decsription

GUANGHUA is larger manufacturer and exporter of high carbon spring wire for flexible ducting, hose, pipe. every year we export over 10,000 tonnes of Uncoated, Bronze coated, Zinc coated wire to America, EU, Asia and Middle East.

Application

Hose
Duct
Pipe

Raw Material: High Carbon Wire Rod SWRH 72A

Chemical Composition of steel wire

Chemical Composition %	C 0.72 Si 0.23 Mn 0.45 P 0.015 S 0.002
	Cr 0.05 Ni 0.01 Cu 0.03 Alt 0.002

Specification

0.90mm

Diameter	0.90mm
Tolerance	+ 0.02mm
Tensile strength	1800-2100MPa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.00mm

Diameter	1.00 mm
Tolerance	+ 0.025mm
Tensile strength	1750-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.10mm

Diameter	1.10 mm
Tolerance	+ 0.025mm
Tensile strength	1750-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.30mm

Diameter	1.30 mm
Tolerance	+ 0.025mm
Tensile strength	1710-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

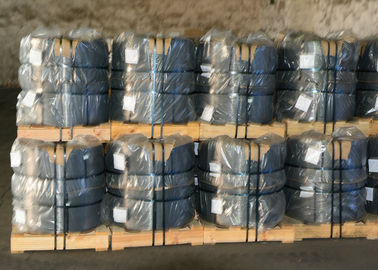

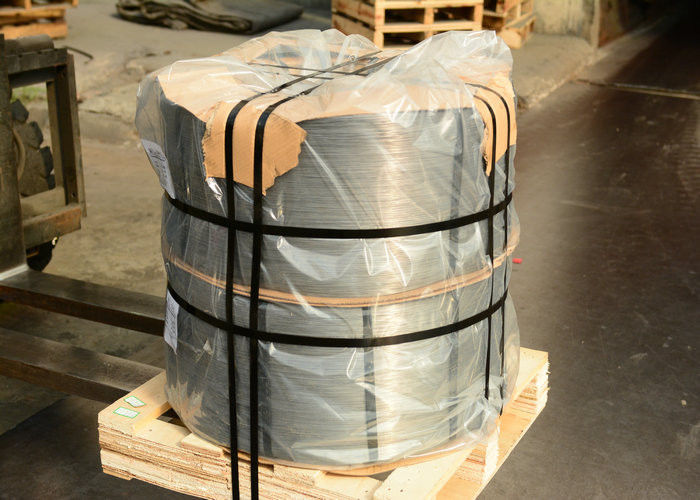

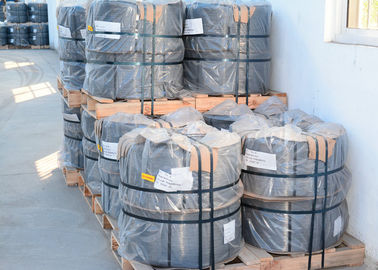

Package

400kgs +/- 20kgs with spooless Z-2 Packs, 2 or 3 Coils in on pallets

Advantage

Consistent tensile strength
Wire free of pay off
Superior Zinc surface
Trouble- free forming
