Cold Drawn Phosphatized Ducting and Hose Steel Spring Wire S / T 1750MPa - 2300MPa

China Cold Drawn Phosphatized Ducting and Hose Steel Spring Wire  S / T 1750MPa - 2300MPa supplier
Cold Drawn Phosphatized Ducting and Hose Steel Spring Wire  S / T 1750MPa - 2300MPa supplier Cold Drawn Phosphatized Ducting and Hose Steel Spring Wire  S / T 1750MPa - 2300MPa supplier Cold Drawn Phosphatized Ducting and Hose Steel Spring Wire  S / T 1750MPa - 2300MPa supplier Cold Drawn Phosphatized Ducting and Hose Steel Spring Wire  S / T 1750MPa - 2300MPa supplier

Large Image :  Cold Drawn Phosphatized Ducting and Hose Steel Spring Wire S / T 1750MPa - 2300MPa

Product Details:

Place of Origin: China
Brand Name: Gangda
Model Number: GD-04-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne
Packaging Details: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
Delivery Time: 10-20 days
Supply Ability: 1500 tonnes per Month
Contact Now
Detailed Product Description
Application: Ducting & Hose Size Range: 0.90mm - 1.60mm
Finishes: Phosphaed And Cold Drawn Steel Grade: High Carbon Steel C1070
Pack: Z-2 Pack, 630mm Steel Reel Standard: DIN 17223 ASTM A227 JISG 3521 Etc.

High Carbon Bright Cold Drawn Phosphatized Ducting and Hose Spring Wire  S / T 1750MPa - 2300MPa



Descripation



GUANGHUA - A Leading Duct Wire Exporter



We are a large manufacturer and exporter of ducting and hose high tensile strength steel wire, our duct wires are produced with strict strict process control, have superior strength uniformity and high qulity surface finish, they are trouble-free forming and pay off.





Specifications:





Diameter: 0.90mm 0.95mm 1.00mm 1.05mm 1.10mm 1.15mm 1.20mm 1.25mm   1.30mm 1.45mm                         1.57mm 1.60mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1750 Mpa – 2300 Mpa.
Finish: Bright / uncoated
Steel Grade: rod grade 1075 HIGH CARBON steel

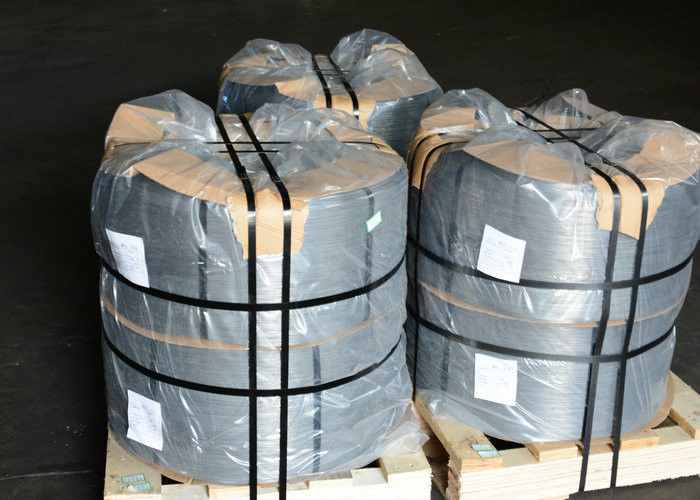

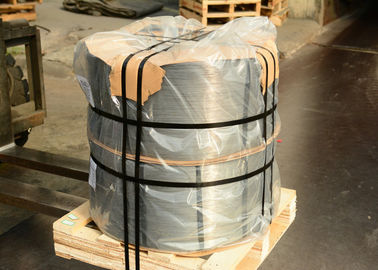

Package: 1) 400kgs +/-20kgs  with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
                      ID: 355mm ( 14”)  Min.
                     OD: 737mm (29”) Max.
                     Wire reel Width: 280 mm (11”)
                2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
                     Flange diameter: 630mm
                     Traverse length: 400mm
                     Barrel diameter: 360 mm
                     Height of reel: 475mm
Standard: DIN 17223    ASTM A227   JISG 3521  etc.



Applications:



Armoured hoses
Flexible ducting
Hose reinforcing



Competitive Advantage:



Consistent high quality steel wires for efficient manufacture of reliable hose and ducting products.
Excellent surface coating
High dimensional accuracy
Trouble-free pay off and forming
