Dia. 0.78mm - 2.00mm High Carbon Spring Wire For Air Duct Trouble - Free Forming Enhanced Coil Pay off
GUANGHUA - the specialist of high carbon steel wire for air duct and hose.
We are one of the most important importer of High Tenisle Carbon Spring Wire in China, we export over 10,000 metric tons to overseas market every year.
Specifications:
Diameter: 0.78mm - 2.0mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1750 Mpa – 2300 Mpa.
Finishes: Bright / uncoated
Bronze coated
Electro-galvanised
Hot-dipped
Steel Grade: rod grade 1060 – rod grade 1080 HIGH CARBON steel

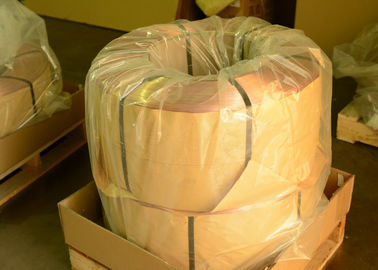

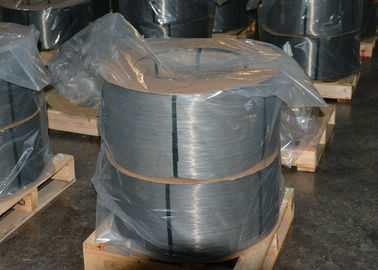

Package: 1) 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)

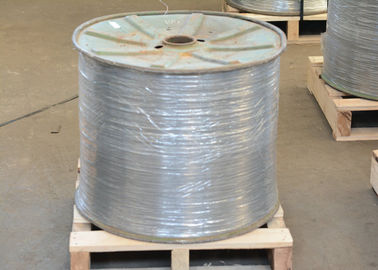

2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
Flange diameter: 630mm
Traverse length: 400mm
Barrel diameter: 360 mm
Height of reel: 475mm
Standard: DIN 17223 ASTM A227 JISG 3521 etc.
Description:
This wires are produced with superior surface finish and free of residual contamination. Manufactured from quality high carbon wire rods and dedicated production processes ensures that give high dimensional accuracy and minimal helix distortion, which results in trouble free payoff and forming.
Applications:
Armoured hoses
Flexible ducting
Hose reinforcing
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of reliable hose and ducting products.
Excellent surface coating
High dimensional accuracy
Trouble-free pay off and forming
