0.90mm 1.00mm 1.30mm Galvanized High Carbon Spring Wire for Duct Hose Pipe

Large Image : 0.90mm 1.00mm 1.30mm Galvanized High Carbon Spring Wire for Duct Hose Pipe

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GH-04-19

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	400kgs Coils in Z-2 Pack
Delivery Time:	20 days
Supply Ability:	200 tonnes per Month

Contact Now

Detailed Product Description

Usage:	For Hose Duct Pipe	Diameter:	0.90mm 1.00mm 1.10mm 1.30mm
Surface Finish:	Zinc Coating	Zinc Coating Weight:	More Than 94g/m3
Packaging:	400kgs Coils In Z-2 Pack	Process:	Hot Dopped And Dry Drawn
High Light:	high carbon spring steel wire , hard drawn spring wire

0.90mm 1.00mm 1.10mm 1.30mm Galvanized Steel Wire for Duct Hose Pipe Zinc Coating Weight 95 g/m2

GUANGHUA - Duct Wire Expert

Decsription

GUANGHUA galvanised wire is round,dry drawn,high carbon,galvanised steel wire for hose armouring and HVAC ducting. be produced with superior zinc coating and consistent brak load and tensile strength.

Application

Hose
Duct
Pipe

Raw Material: High Carbon Wire Rod SWRH 72A

Chemical Composition of steel wire

Chemical Composition %	C 0.72 Si 0.23 Mn 0.45 P 0.015 S 0.002
	Cr 0.05 Ni 0.01 Cu 0.03 Alt 0.002

Specification

0.90mm

Diameter	0.90mm
Tolerance	+ 0.02mm
Tensile strength	1800-2100MPa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.00mm

Diameter	1.00 mm
Tolerance	+ 0.025mm
Tensile strength	1750-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.10mm

Diameter	1.10 mm
Tolerance	+ 0.025mm
Tensile strength	1750-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.30mm

Diameter	1.30 mm
Tolerance	+ 0.025mm
Tensile strength	1710-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

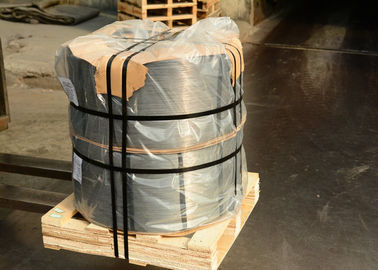

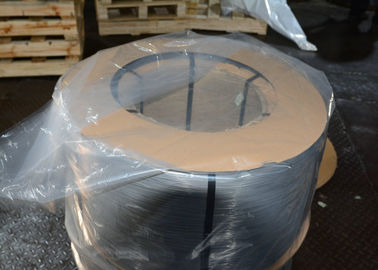

Package

400kgs +/- 20kgs with spooless Z-2 Packs, 2 or 3 Coils in on pallets

Advantage

Consistent tensile strength
Wire free of defects
Superior Zinc surface
Trouble- free pay off
