High Tensile galvanized wire , Zinc Coating High Carbon Steel Wire Weight 95 g/m2

Large Image : High Tensile galvanized wire , Zinc Coating High Carbon Steel Wire Weight 95 g/m2

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GH-04-18

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	400kgs Coils in Z-2 Pack
Delivery Time:	20 days
Supply Ability:	200 tonnes per Month

Contact Now

Detailed Product Description

Usage:	Manufacture Of Hose, Duct, Pipe	Diameter:	0.90mm 1.00mm 1.10mm 1.30mm
Finish:	Zinc Coated	Zinc Coating Weight:	More Than 94g/m3
Packaging:	400kgs Coils In Z-2 Pack
High Light:	hard drawn spring wire , steel spring wire

Galvanized High Carbon Steel Wire for Duct Hose Pipe Zinc Coating Weight 95 g/m2

Raw Material: High Carbon Wire Rod SWRH 72A

Chemical Composition of steel wire

Chemical Composition %	C 0.72 Si 0.23 Mn 0.45 P 0.015 S 0.002
	Cr 0.05 Ni 0.01 Cu 0.03 Alt 0.002

Specification

0.90mm

Diameter	0.90mm
Tolerance	+ 0.02mm
Tensile strength	1800-2100MPa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.00mm

Diameter	1.00 mm
Tolerance	+ 0.025mm
Tensile strength	1750-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.10mm

Diameter	1.10 mm
Tolerance	+ 0.025mm
Tensile strength	1750-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

1.30mm

Diameter	1.30 mm
Tolerance	+ 0.025mm
Tensile strength	1710-1950 Mpa
Weight of Zinc coating	95 g/m2
Straightness	25 - 600mm on 3 meters Length

Package

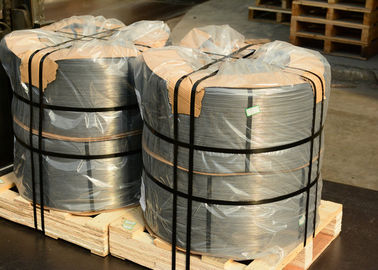

400kgs +/- 20kgs with spooless Z-2 Packs, 2 or 3 Coils in on pallets

Application

Duct
Hose
Pipe

Advantage

Consistent tensile strength
Wire free of defects
Superior Zinc surface
Trouble- free pay off
