High Tensile Duct Bright Spring Wire for Hose Armouring and HVAC Ducting Dia. 0.90mm - 1.57mm JIS G 3521
GUANGHUA - the specialist of carbon spring wire for air duct and hose.
Specifications:
Diameter: 0.90mm - 1.57mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1750 Mpa – 2300 Mpa.
Finishes: Bright / uncoated
Steel Grade: rod grade 1065 – rod grade 1080 HIGH CARBON steel

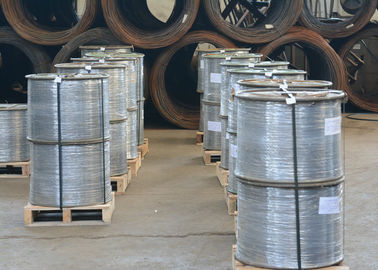

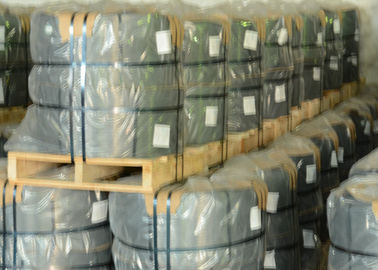

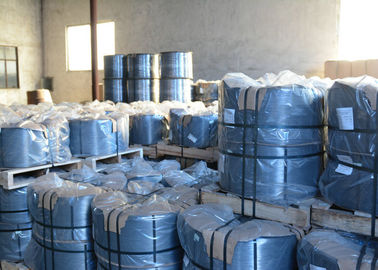

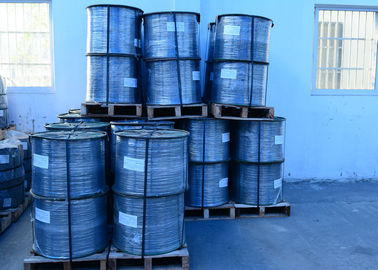

Package: 1) 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
Flange diameter: 630mm
Traverse length: 400mm
Barrel diameter: 360 mm
Height of reel: 475mm
Standard: BS5216 DIN17223 EN10270
Description:
Wires for hose armouring and HVAC ducting are produced with a superior surface finish, free from residual contamination
Applications:
Armoured hoses
Flexible ducting
Hose reinforcing
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of reliable hose and ducting products.
Superior surface finish
High dimensional accuracy
Trouble-free pay off
Superior tensile strength uniformity
