0.90mm - 1.57mm High Carbon Spring Wire , Bright Steel Wire 750 - 2300Mpa

Large Image : 0.90mm - 1.57mm High Carbon Spring Wire , Bright Steel Wire 750 - 2300Mpa

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-04-16

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z2 Pack Steel reel
Delivery Time:	10 -20 days
Supply Ability:	1500 tonnes per Month

Contact Now

Detailed Product Description

Application:	Air Duct	Size Range:	0.78 Mm - 1.57mm
Tensile Strength:	1750 - 2300 Mpa	Finishes:	Bright
Pack:	Z-2 Pack , Steel Reel	Standard:	BS5216 DIN17223 EN10270
High Light:	high carbon spring steel wire , hard drawn spring wire

Dia. 0.78mm - 1.57mm Duct Bright Wire T/S 1750-2300Mpa Packed in Z2 Coil or steel reels BS5216 DIN17223 EN10270

GUANGHUA - the specialist of carbon spring wire for air duct and hose.

Specifications:

Diameter: 0.90mm - 1.57mm

Diameter Tolerance: +/- 0.02mm

Tensile Strength: 1750 Mpa – 2300 Mpa.

Finishes: Bright / uncoated

Steel Grade: rod grade 1065 – rod grade 1080 HIGH CARBON steel

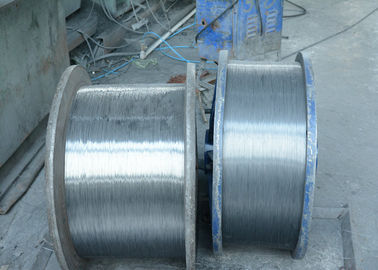

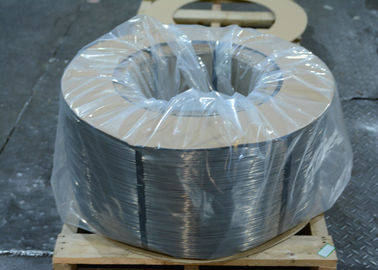

Package: 1) 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.

ID: 355mm ( 14”) Min.

OD: 737mm (29”) Max.

Wire reel Width: 280 mm (11”)

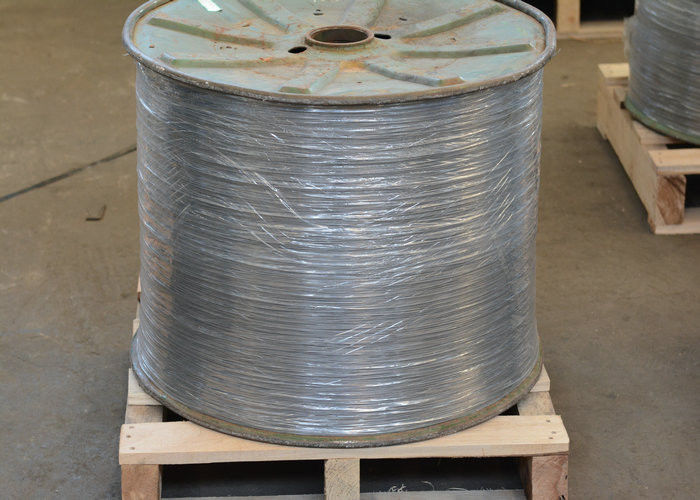

2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets

Flange diameter: 630mm

Traverse length: 400mm

Barrel diameter: 360 mm

Height of reel: 475mm

Standard: BS5216 DIN17223 EN10270

Description:

This wire is produced with superior surface finish and free of residual contamination. Manufactured from quality high carbon wire rods and dedicated production processes ensures that give high dimensional accuracy and minimal helix distortion, which results in trouble free payoff and forming.

Applications:

Armoured hoses

Flexible ducting

Hose reinforcing

Competitive Advantage:

Consistent high quality steel wires for efficient manufacture of reliable hose and ducting products.

Clear surface coating

High dimensional accuracy

Trouble-free pay off

Tag:

Contact Person: Mr. Victor Wang

Tel: 86-512-58581106

Fax: 86-512-58971030
