Product Details:
Payment & Shipping Terms:
|
Standard: | EN 10270 -1 | Wire Grade: | Static SL SM SH |
---|---|---|---|

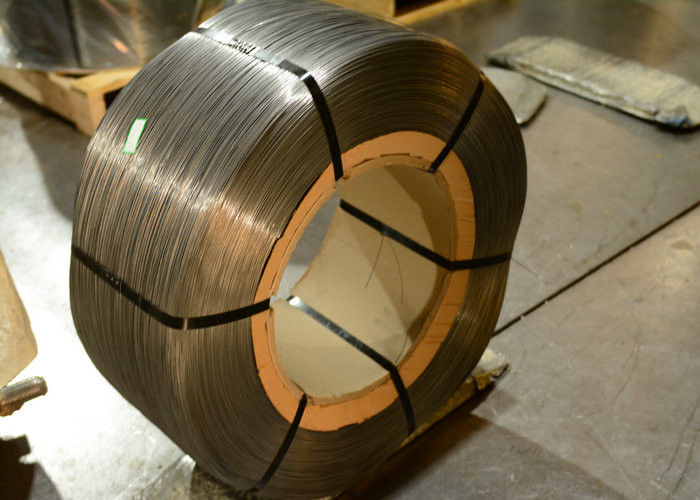

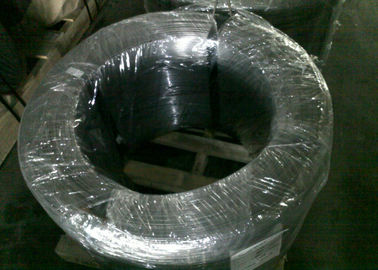

Surface Finish: | Briht, Phosphated, Copper Zinc | Packaging: | Z2, Z3, Spool, Strapped Coil |
Process: | Patented And Cold Drawn | Application: | Mechaniacl Springs |
High Light: | high carbon spring steel wire,steel spring wire |
GUANGHUA - a leading carbon steel wire manufacturer and exporter
.
Mechanical properties
Dia. mm |
Tolerance mm |
Tensile Strength MPa |
||||
SL |
SM |
DM |
SH |
DH |
||
0.60 |
+/- 0.008 |
|
2140-2400 |
2140-2400 |
2410-2670 |
2410-2670 |
0.63 |
2130-2380 |
2130-2380 |
2390-2650 |
2390-2650 |
||
0.65 |
+/- 0.010 |
2120-2370 |
2120-2370 |
2380-2640 |
2380-2640 |
|
0.70 |
2090-2350 |
2090-2350 |
2360-2610 |
2360-2610 |
||
0.75 |
2070-2320 |
2070-2320 |
2330-2580 |
2330-2580 |
||
0.80 |
+/- 0.015 |
2050-2300 |
2050-2300 |
2310-2560 |
2310-2560 |
|
0.85 |
2030-2280 |
2030-2280 |
2290-2530 |
2290-2530 |
||
0.90 |
2010-2260 |
2010-2260 |
2270-2510 |
2270-2510 |
||
0.95 |
2000-2240 |
2000-2240 |
2250-2490 |
2250-2490 |
||
1.00 |
1720-1970 |
1980-2220 |
1980-2220 |
2230-2470 |
2230-2470 |
|
1.05 |
+/- 0.020 |
1710-1950 |
1960-2200 |
1960-2200 |
2210-2450 |
2210-2450 |
1.10 |
1690-1940 |
1950-2190 |
1950-2190 |
2200-2430 |
2200-2430 |
|
1.20 |
1670-1910 |
1920-2160 |
1920-2160 |
2170-2400 |
2170-2400 |
|
1.25 |
1660-1900 |
1910-2140 |
1910-2140 |
2150-2380 |
2150-2380 |
|
1.30 |
1640-1890 |
1900-2130 |
1900-2130 |
2140-2370 |
2140-2370 |
|
1.40 |
1620-1860 |
1870-2100 |
1870-2100 |
2110-2340 |
2110-2340 |
|
1.50 |
1600-1840 |
1850-2080 |
1850-2080 |
2090-2310 |
2090-2310 |
|
1.60 |
1590-1820 |
1830-2050 |
1830-2050 |
2060-2290 |
2060-2290 |
|
1.70 |
1570-1800 |
1810-2030 |
1810-2030 |
2040-2260 |
2040-2260 |
|
1.80 |
+/- 0.030
|
1550-1780 |
1790-2010 |
1790-2010 |
2020-2240 |
2020-2240 |
1.90 |
1540-1760 |
1770-1990 |
1770-1990 |
2000-2220 |
2000-2220 |
|
2.00 |
1520-1750 |
1760-1970 |
1760-1970 |
1980-2200 |
1980-2200 |
|
2.10 |
1510-1730 |
1740-1960 |
1740-1960 |
1970-2180 |
1970-2180 |
|
2.25 |
1490-1710 |
1720-1930 |
1720-1930 |
1940-2150 |
1940-2150 |
|
2.40 |
1470-1690 |
1700-1910 |
1700-1910 |
1920-2130 |
1920-2130 |
|
2.50 |
1460-1680 |
1690-1890 |
1690-1890 |
1900-2110 |
1900-2110 |
|
2.60 |
1450-1660 |
1670-1880 |
1670-1880 |
1890-2100 |
1890-2100 |
|
2.80 |
1420-1640 |
1650-1850 |
1650-1850 |
1860-2070 |
1860-2070 |
|
3.00 |
1410-1620 |
1630-1830 |
1630-1830 |
1840-2040 |
1840-2040 |
|
3.20 |
1390-1600 |
1610-1810 |
1610-1810 |
1820-2020 |
1820-2020 |
|
3.40 |
1370-1580 |
1590-1780 |
1590-1780 |
1790-1990 |
1790-1990 |
|
3.60 |
1350-1560 |
1570-1760 |
1570-1760 |
1770-1970 |
1770-1970 |
|
3.80 |
1340-1740 |
1550-1740 |
1550-1740 |
1750-1950 |
1750-1950 |
Chemical composition, % by mass
Grade |
C |
Si |
Mn |
P |
S |
Cu |
SL,SM,SH |
0.35-1.00 |
0.10-0.30 |
0.50-1.20 |
0.035 |
0.035 |
0.20 |
DM, DH |
0.45-1.00 |
0.10-0.30 |
0.020 |
0.025 |
0.025 |
0.12 |
Spring wire grades |
To be used for |
SL |
Tension, compression, torsion spring which are predominantly subjected low stress. |
SM |
Tension, compression, torsion spring which are subjected to medium high static stress or rarely to dynamic stress. |
DM |
Tension, compression, torsion spring which are subjected to medium high dynamic, Also for wire form which require severe bending. |
SH |
Tension, compression, torsion spring which are subjected to high static stress or slightly dynamic stress. |
DH |
Tension, compression, torsion spring or wire forms subjected to high static stress or medium level dynamic stress. |
Strict raw material selection and highly controlled processing yields a product suited to applications where fatigue lif and resistanct to relaxation are critical.
Strict raw material selection
Dedicated production process
Material consistency
Clean uniform surface finish
Various packaging options
Comlete product tracabliity
