Patented High carbon steel wire rod for Cut Wire Shot 0.50mm 1mm 1.60mm

Large Image : Patented High carbon steel wire rod for Cut Wire Shot 0.50mm 1mm 1.60mm

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-14-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z-2 coils with paper core
Delivery Time:	10 - 20 days
Supply Ability:	800 tonnes per Month

Contact Now

Detailed Product Description

Application:	Manufacture Of Cut Wire Shot.	Diameter Range:	0.50mm - 1.60mm
T/S Grage 1:	1600MPa. - 2200MPa	T/S Grade 2:	2150MPa. - 2400MPa
Packaging:	Z-2 Pack
High Light:	copper coated steel wire , high strength wire

High carbon steel wire Diameter 0.50mm - 1.60mm Usage Cut Wire Shot Manufacture

Specifications

Diameter: 0.50mm 0.60mm 0.70mm 0.80mm 0.90mm 1.00mm 1.10mm 1.20mm 1.40mm 1.60mm

Diameter Tolerance: +/- 0.02mm

Product A

Tensile Strength 2150MPa. - 2400MPa.
Finish: Bright, Copper coated
Steel Grade: rod grade 1075 – rod grade 1085 HIGH CARBON steel

Product B

Tensile Strength: 1600Mpa. - 2200Mpa.
Finish: Bright
Steel Grade: rod grade 1060 – rod grade 1070 HIGH CARBON steel

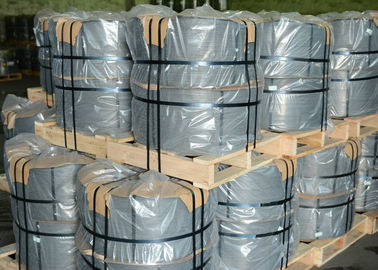

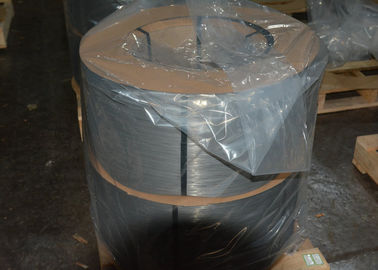

Package

400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 coils in one pallet
ID: 355mm Min.
OD: 737mm Max.
Wire reel Width: 280 mm

Description

This wire is round ,uncoated, cold-drawn, patented ,high carbon steel spring wire, having properties quality suitable for the manufacture of cut wire shot

Applications

Carbon Cut wire shot.

Competitive Advantage

Consistent high quality steel wires for efficient manufacture of cut wire hot
High dimensional accuracy
Trouble-free pay off
