70# High Carbon Spring Steel Wire for Air duct Diameter 0.90 - 1.60mm Tensile strength 1750 - 2300Mpa Z2 Pack
Specifications:
Diameter: 0.90 – 1.60mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1750 – 2300 Mpa.
Surface Finish: Phosphatized and Bright dry drawn
Steel Grade: C1070

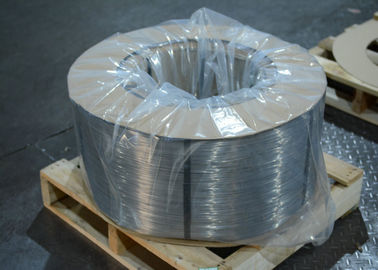

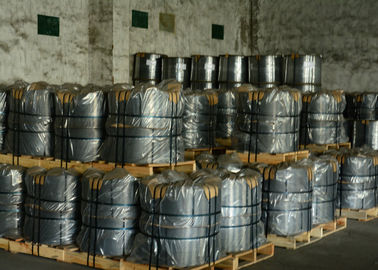

Package: 1) 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 or 3
coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)

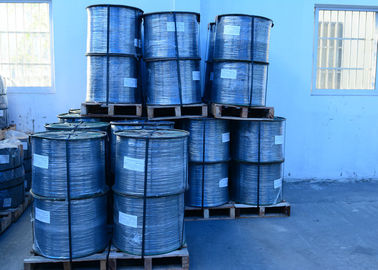

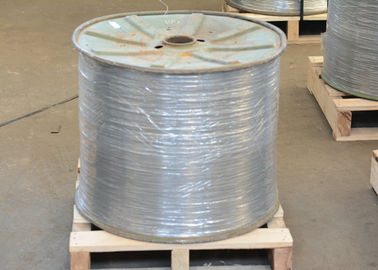

2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
Flange diameter: 630mm
Traverse length: 400mm
Barrel diameter: 360 mm
Height of reel: 475mm
Standard: DIN 17223 JISG 3521.
Description:
The High carbon Spring Steel Wire is patented cold drawn round carbon steel wire, made from 70# quality high carbon wire rod, used for helical spring of air duct
Applications:
air duct
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of springs
Clean wire surface
Trouble-free pay off and forming
