Cold Drawn High Tensile Steel Wire Tensile strength 1900 - 2400Mpa Diameter 0.50mm - 1.80mm
Specifications:
Diameter: 0.60mm – 1.80mm
Diameter Tolerance: +/- 0.02mm or 0.03mm
Tensile Strength: 1900 – 2400 Mpa.
Surface Finish: Bright dry drawn and phosphate
Steel Grade: rod grade 1065 – rod grade 1085 HIGH CARBON steel

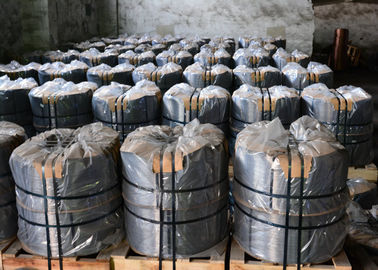

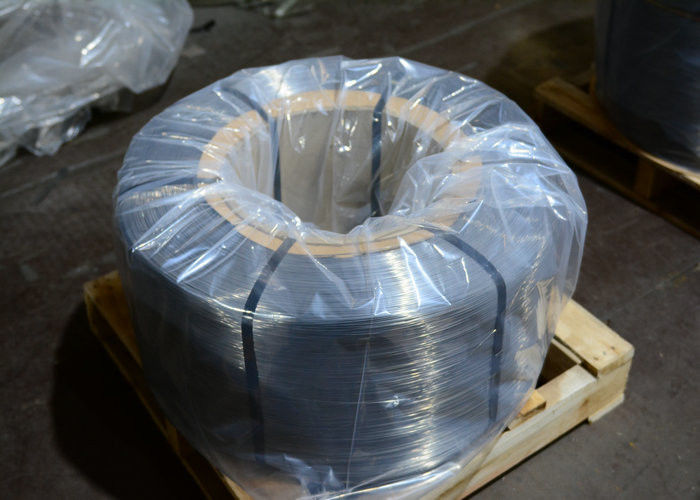

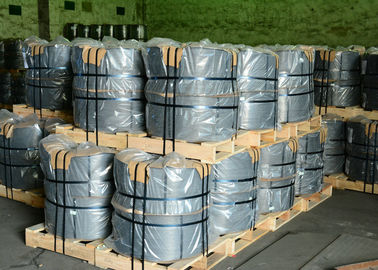

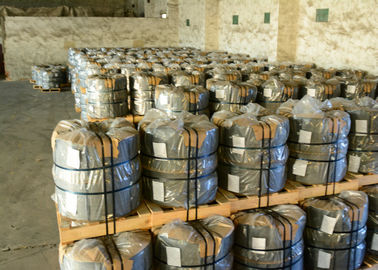

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
Standard: ASTM A 679 / A 679 M
Description:
This wire is high tensile, cold drawn, round carbon steel wire, normally used for manufacture of mechanical spring and wire froms subject to high static stresss or infrequent dynamic load, or both.
Applications:
General purpose torsion, extension and compression spring
Spring washers
Wire spring
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of springs
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off and forming
