Product Details:
Payment & Shipping Terms:
|
| Application: | For Carbon Cut Wire Shot Manufacture | Size Diameter: | 0.50mm - 1.60mm |
|---|---|---|---|
| Steel Garde: | High Carbon | Surface Finish: | Bright |
| Packaging: | Z2 Pack | ||
| High Light: | high strength wire,bright steel wire |
||
GHUANGHUA - High Carbon Steel Wire Expert
1. WIRE DIAMETER USED FOR CUT WIRE SHOT
|
Shot Size |
Mean Wire Diameter mm |
Mean Wire Diameter in |
|
SCW/CW-62 |
1.6 |
0.062 |
|
SCW/CW-54 |
1.4 |
0.054 |
|
SCW/CW-47 |
1.2 |
0.047 |
|
SCW/CW-41 |
1.0 |
0.041 |
|
SCW/CW-35 |
0.9 |
0.035 |
|
SCW/CW-32 |
0.8 |
0.032 |
|
SCW/CW-28 |
0.7 |
0.028 |
|
SCW/CW-23 |
0.6 |
0.023 |
|
SCW/CW-20 |
0.5 |
0.020 |
2. TENSILE PROPERTIES OF CUT WIRE SHOT
|
Shot Size mm |
Shot Size in |
Tensile Strength Carbon Steel Wire MPa |
Tensile Strength Carbon Steel Wire ksi |
|
1.6 |
SCW/CW-62 |
1630-1880 |
237-272 |
|
1.4 |
SCW/CW-54 |
1680-1920 |
243-279 |
|
1.2 |
SCW/CW-47 |
1710-1970 |
248-286 |
|
1.0 |
SCW/CW-41 |
1760-2020 |
255-293 |
|
0.9 |
SCW/CW-35 |
1800-2080 |
261-301 |
|
0.8 |
SCW/CW-32 |
1830-2110 |
266-306 |
|
0.7 |
SCW/CW-28 |
1870-2140 |
271-311 |
|
0.6 |
SCW/CW-23 |
1920-2200 |
279-319 |
|
0.5 |
SCW/CW-20 |
1950-2230 |
283-323 |
3. Hardness
Carbon steel cut wire particles shall have a minimum hardness of 426 KHN (42 HRC)
4. Steel garde
C1065 wire rod - C1085 wire rod.
5. Surface Finish
Bright
6. Packaging

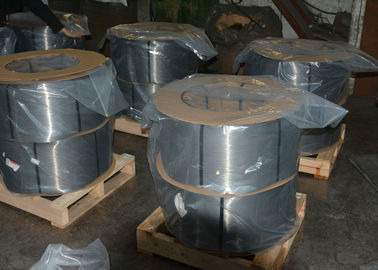

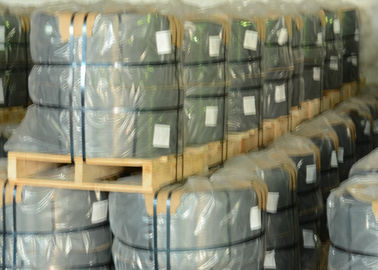

400kg +/- 20 kgs Z-2 coil with paper core
The high carbon wire is manufactured for carbon cut wire shot. the carbon cut wire shot used for shot peening, where small particles are fired at a workpiece by a compressed air jet.
