1600MPa - 2400MPa Cold Drawn Cut Wire Shot High carbon Wire rod

Large Image : 1600MPa - 2400MPa Cold Drawn Cut Wire Shot High carbon Wire rod

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-14-05

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z-2 coils with paper core
Delivery Time:	10 - 20 days
Supply Ability:	800 tonnes per Month

Contact Now

Detailed Product Description

Usage:	Manufacture Of Cut Wire Shot.	Diameter Range:	0.50mm - 1.60mm
T/S Grage 1:	1600MPa. - 2200MPa	T/S Grade 2:	2150MPa. - 2400MPa
Packaging:	Z-2 Spooless Coil	Surface Finish:	Bright, Copper Coated
Procee:	Patented And Cold Drawn
High Light:	copper coated steel wire , high strength wire

Cold Drawn High carbon Steel Wire Size 0.50mm - 1.60mm Application Cut Wire Shot Manufacture

GUANGHUA - A leading carbon steel wire manufacture and exporter.

Description

We produce high carbon steel wire for cut wire shot that are extremely superior in quality and work with accuracy in their variety of desired applications.

Specifications

Diameter: 0.50mm 0.60mm 0.70mm 0.80mm 0.90mm 1.00mm 1.10mm 1.20mm 1.40mm 1.60mm

Diameter Tolerance: +/- 0.02mm

Product A

Tensile Strength 2150MPa. - 2400MPa.
Finish: Bright, Copper coated
Steel Grade: rod grade 1075 – rod grade 1085 HIGH CARBON steel

Product B

Tensile Strength: 1600Mpa. - 2200Mpa.
Finish: Bright
Steel Grade: rod grade 1060 – rod grade 1070 HIGH CARBON steel

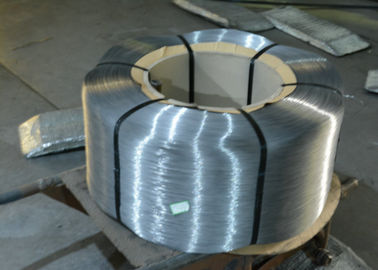

Package

400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 coils in one pallet
ID: 355mm Min.
OD: 737mm Max.
Wire reel Width: 280 mm

Applications

Carbon Cut wire shot.

Competitive Advantage

Consistent high quality steel wires for efficient manufacture of cut wire hot
Trouble-free pay off
