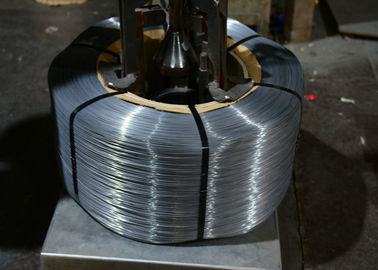

SWRH 77A 82A High Tensile Spring Steel Wire T / S 1900 to 2400Mpa Dia. 0.50mm to 1.80mm
Specifications:
Diameter: 0.60mm – 1.80mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1900 – 2400 Mpa.
Finish: Bright dry drawn and phosphatized
Steel Grade: rod grade 1070 – rod grade 1085 HIGH CARBON steel

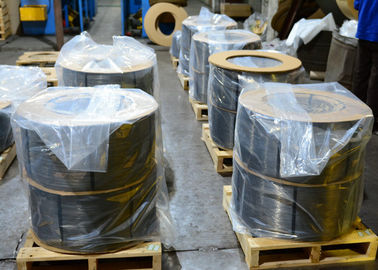

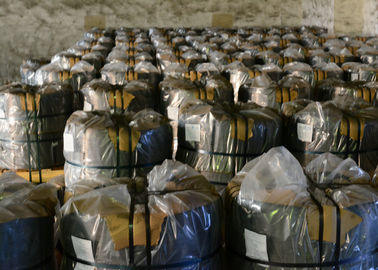

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
Standard: A679/A 679M etc.
Description:
This wire is round, uncoated, high tensile strength, cold drawn carbon spring wire, suitable for the manufacture of mechanical springs and wire forms subject to high static stresses.
Applications:
General purpose torsion, extension and compression spring
Wire spring
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of springs
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off and forming
