ASTM A679 / A679 M High Tensile Steel Wire Hard Draw Diameter 0.50mm - 1.80mm
Specifications:
Diameter: 0.50mm 0.60mm 0.65mm 0.70mm 0.80mm 0.90mm 1.00mm 1.10mm 1.20mm 1.40mm 1.60mm 1.80mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1980Mpa - 2400Mpa
Finish: Bright / Uncoated
Steel Grade: rod grade 1065 – rod grade 1085 HIGH CARBON steel

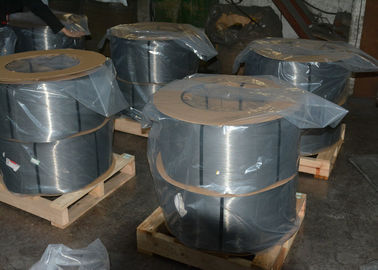

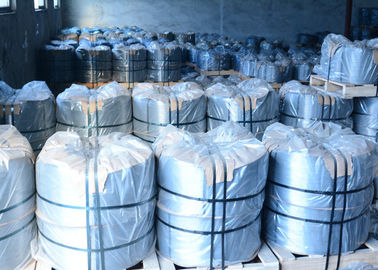

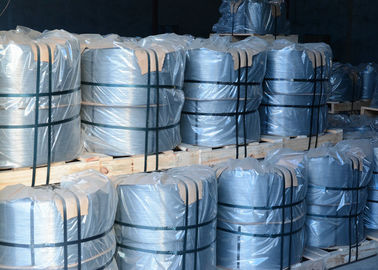

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
Description:
This wire is round ,uncoated, high tensile strength, cold-drawn steel spring wire, having properties quality suitable for wire shot, the manufacture of mechanical spring, wire froms subject to high static stresses or infrequent dynamic load or both.
Applications:
mechanical spring,
wire from
wire shot.
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of mechanical spring, wire froms,
Excellent surface coating
High dimensional accuracy
Trouble-free pay off and forming
