Diameter 0.50mm to 1.80mm Bright High Tensile Spring Steel Wire Tensile strength 1900 to 2400Mpa
GHUANGHUA - High Carbon Steel Wire Specialist
Specifications:
Diameter: 0.60mm – 1.80mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1900 – 2400 Mpa.
Finish: Bright dry drawn and phosphatized
Steel Grade: Wire rod 70# SWRH72A /77A /82A C82DA

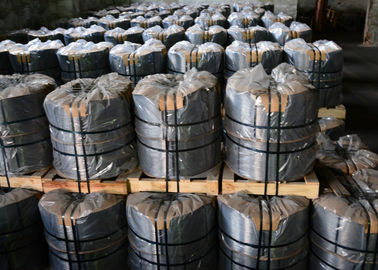

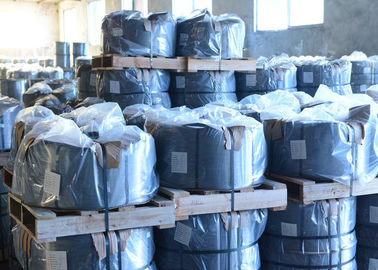

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
Standard: A679/A 679M etc.
Description:
This wire is round, uncoated, high tensile strength, cold drawn carbon spring wire, suitable for the manufacture of mechanical springs and wire forms subject to high static stresses.
Applications:
General purpose torsion, extension and compression spring
Wire spring
etc.
Competitive Advantage:
Consistent high quality steel wires
Minimum tensile variation
High dimensional accuracy
Trouble-free pay off
