Home ProductsHigh Tensile Steel Wire

Uncoated High Tensile Steel Wire for Flexible Air Duct , high carbon wire rod

GUANGHUA is a very professional company. I am very happy to cooperate with them. I am always content with their efficient delivery.

—— Mr Brown

They will always keep their words, and always put customer's benefit on first consideration, that's why we chose them as a long-term business partner!

—— Mr.Thomas BIttig

Thanks for your good quality product and excellent service, we will come back again!

—— Amarjit Singh

I'm Online Chat Now

Uncoated High Tensile Steel Wire for Flexible Air Duct , high carbon wire rod

China Uncoated High Tensile Steel Wire for Flexible Air Duct , high carbon wire rod supplier
Uncoated High Tensile Steel Wire for Flexible Air Duct , high carbon wire rod supplier Uncoated High Tensile Steel Wire for Flexible Air Duct , high carbon wire rod supplier Uncoated High Tensile Steel Wire for Flexible Air Duct , high carbon wire rod supplier Uncoated High Tensile Steel Wire for Flexible Air Duct , high carbon wire rod supplier

Large Image :  Uncoated High Tensile Steel Wire for Flexible Air Duct , high carbon wire rod

Product Details:

Place of Origin: China
Brand Name: GangDa
Model Number: GD-03-03

Payment & Shipping Terms:

Minimum Order Quantity: 1 Tonne
Packaging Details: Z2 pack, Steel reel, Wooden spool
Delivery Time: 15-25 days
Supply Ability: 1200 tonnes per Month
Contact Now
Detailed Product Description
Application: Air Duct Steel Grade: High Carbon Steel
Size Range: 0.90 - 1.45mm Pack: Z2 Pack, Steel Reel, Wooden Spool
Standard: DIN 17223

Uncoated  High Tensile Steel Wire for Flexible Air Duct  Diameter 0.90 - 1.57mm Tensile strength 1750 - 2300 Mpa




Specifications:
Diameter:0.90mm 0.95mm 1.00mm 1.05mm 1.10mm 1.15mm 1.20mm 1.25mm 1.30mm 1.45m 1.57mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1750Mpa – 2300 Mpa.
Finish:uncoated
Steel Grade: rod grade 1070 HIGH CARBON steel

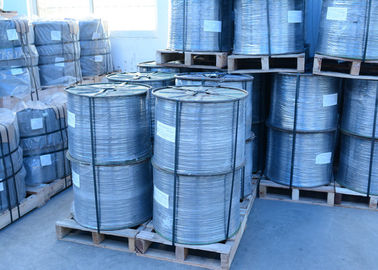

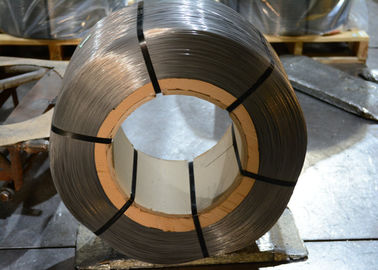

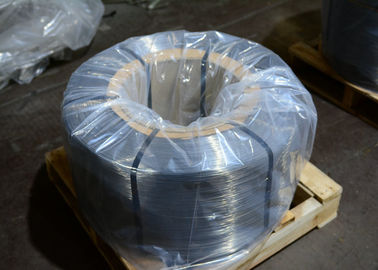

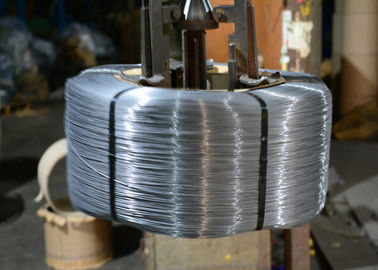

Package: 1) 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs,
                     2 coils in one pallet.
                     ID: 355mm ( 14”)  Min.
                     OD: 737mm (29”) Max.
                     Wire reel Width: 280 mm (11”)
                 2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
                     Flange diameter: 630mm
                     Traverse length: 400mm
                     Barrel diameter: 360 mm
                     Height of reel: 475mm
Standard: DIN 17223
Description:
This wires are produced with superior surface finish and free of residual contamination. Manufactured from quality high carbon wire rods and dedicated production processes ensures that give high dimensional accuracy and minimal helix distortion, which results in trouble free payoff and forming.
Applications:
Flexible air ducts
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of reliable ducting products.
Excellent surface coating
High dimensional accuracy
Trouble-free pay off and forming
