0.020 " - 0.062 " High Crabon Cold Drawn Steel Wire T / S 237 KSI - 323 KSI

Large Image : 0.020 " - 0.062 " High Crabon Cold Drawn Steel Wire T / S 237 KSI - 323 KSI

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-6-05

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	400kgs with Z2 coils
Delivery Time:	10 - 15 dyas
Supply Ability:	500 tonnes

Contact Now

Detailed Product Description

Application:	For Carbon Cut Wire Shot	Size Diameter:	0.020" - 0.062"
Steel Garde:	High Carbon	Surface Finish:	Bright, Copper Coated
Packaging:	Z2 Pack	Cut Wire Shot Standard:	SAE J441 -1993
High Light:	high carbon steel wire , High Tensile Steel Wire

0.020 " - 0.062 " Cold Drawn High Crabon Steel Wire for Cut Wire Shot T / S 237 KSI - 323 KSI

GHUANGHUA - High Carbon Steel Wire Expert

Specification

Wire size for cut wire shot

Shot Size	Mean Wire Diameter in
SCW/CW-62	0.062
SCW/CW-54	0.054
SCW/CW-47	0.047
SCW/CW-41	0.041
SCW/CW-35	0.035
SCW/CW-32	0.032
SCW/CW-28	0.028
SCW/CW-23	0.023
SCW/CW-20	0.020

Wire tensile properties for cut wire rod

Shot Size in	Tensile Strength Carbon Steel Wire ksi
SCW/CW-62	237-272
SCW/CW-54	243-279
SCW/CW-47	248-286
SCW/CW-41	255-293
SCW/CW-35	261-301
SCW/CW-32	266-306
SCW/CW-28	271-311
SCW/CW-23	279-319
SCW/CW-20	283-323

Hardness: Carbon steel cut wire particles shall have a minimum hardness of 426 KHN (42 HRC)

Steel garde: C1065 wire rod - C1085 wire rod.

Surface Finish: Bright , Copper coated

Cut wire shot standard SAE J441 -1993

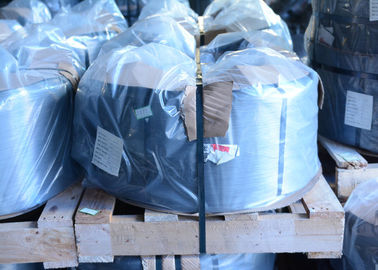

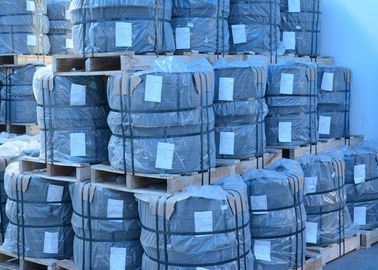

Packaging

400kg +/- 20 kgs Z-2 coil with paper core

Description

GUANGHUA is a leading carbon steel wire manufacturer and exporter, we may supply quality high carbon steel wire for carbon cut wire shot manufacture.

Advantage

High dimensional accuracy
Consistent tensile strength
Enchanced coil pay off
