Home ProductsTyre Bead Wire

High Dimensional Accuracy Copper Plated Steel Wire for Air Duct , PE Pipe , Brush

GUANGHUA is a very professional company. I am very happy to cooperate with them. I am always content with their efficient delivery.

—— Mr Brown

They will always keep their words, and always put customer's benefit on first consideration, that's why we chose them as a long-term business partner!

—— Mr.Thomas BIttig

Thanks for your good quality product and excellent service, we will come back again!

—— Amarjit Singh

I'm Online Chat Now

High Dimensional Accuracy Copper Plated Steel Wire for Air Duct , PE Pipe , Brush

China High Dimensional Accuracy Copper Plated Steel Wire for  Air Duct  , PE Pipe , Brush supplier
High Dimensional Accuracy Copper Plated Steel Wire for  Air Duct  , PE Pipe , Brush supplier High Dimensional Accuracy Copper Plated Steel Wire for  Air Duct  , PE Pipe , Brush supplier High Dimensional Accuracy Copper Plated Steel Wire for  Air Duct  , PE Pipe , Brush supplier High Dimensional Accuracy Copper Plated Steel Wire for  Air Duct  , PE Pipe , Brush supplier

Large Image :  High Dimensional Accuracy Copper Plated Steel Wire for Air Duct , PE Pipe , Brush

Product Details:

Place of Origin: China
Brand Name: GANGDA
Model Number: GD- 01-16

Payment & Shipping Terms:

Minimum Order Quantity: 1 Tonne
Packaging Details: 400 kgs with Spooless cores Z-2 Packs, 2 or 3 Coills in one Pallet, 24 Pallets per 20" Container, 20 to 25 tonners per 20" Container
Delivery Time: 20 days
Supply Ability: 1000 tonners per month
Contact Now
Detailed Product Description
Application: Air Duct, PE Pipe, Brush Finshes: Copper Plated
Steel Grade: High Carbon Steel Packaging: Z-pack / Steel Reel / Spool
Standard: GB14450-2003

Usage  Air Duct ,  Pipe,  Brush,   Copper Plated Wire  Diameter  0.60 to 3.0mm



Specifications



1. Diameter:  a. 0.60mm 0.70mm 0.78/0.80mm 0.89/0.90mm 1.00mm                                                                              1.10mm1.20mm 1.26mm1.30mm
                      b. 1.50mm 1.65mm 1.80mm 2.00mm 2.20mm 2.30mm
                      c.  2.80mm 3.00mm 3.10mm 3.20mm 3.30mm 3.50mm
                      Diameter Tolerance: +/- 0.02mm or +/-0.03mm
2. Finish: Copper coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength:  a. 1750 – 2300 Mpa
                                   b. 1500 – 1900 Mpa
                                   c.  as per client's request
5. Steel Grade: High Carbon Steel  C1065  C1070  C1072  C1080

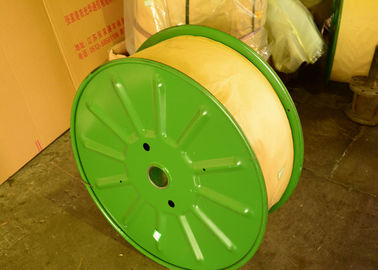

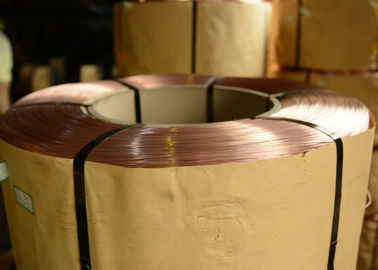

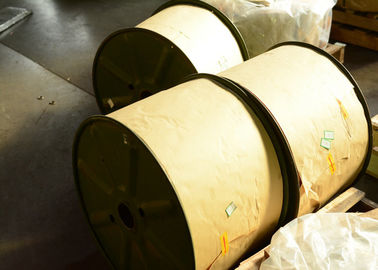

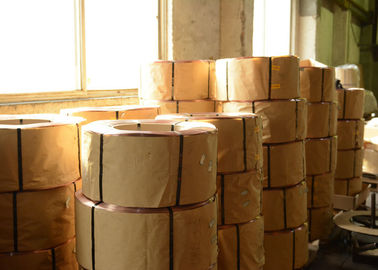

6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
                    ID: 355mm Min.
                    D: 720mm Max.
                    Wire reel Width: 280mm
7. Standard: GB14450-2004 or as per client’s specification




Description:



Copper plated Bead Wire is manufactured from quality high carbon wire rods, superior surface coating and are used for the reinforcement of all sorts of reliable ducting, hose and PE pipe.



Applications:



Armoured hoses
Flexible ducting
Hose reinforcing
Pipe




Competitive Advantage:



Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
