High Carbon Bronze Spring Wire Dia. 1.50mm to 3.50mm T / s 1400Mpa to 1900Mpa Steel reel pack
Specifications
1. Diameter: 1.50mm - 3.5mm / 0.062" - 0.135" (inch)
2. Diameter Tolerance: +/- 0.025mm / +/- 0.001"
3. Finishes: Bronze coating
4. Weight of bronze coating: 0.30 g/kg
5. Tensile Strength: 1400 – 1900 Mpa / 206,000 - 272,000 PSI
6. Steel Grade: High Carbon Steel C1065 C1070 C1072 C1080

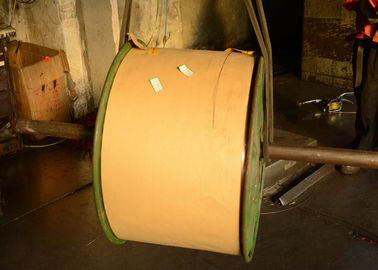

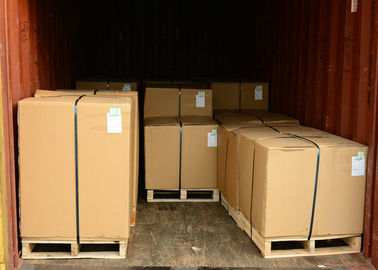

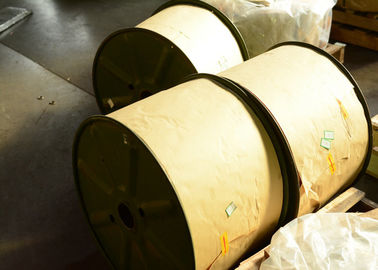

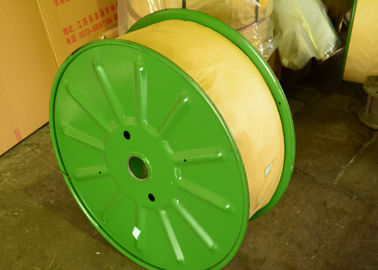

7. Package: 400kgs per steel reel, 1 reel or 2 reels on one pallets
Flange diameter: 760mm
Traverse length: 280mm
Barrel diameter: 354 mm
Height of reel: 320mm
8. Standard: as per client’s specification
Description
High Carbon Bronze Spring Wire is manufactured from quality high carbon wire rods and are used for the reinforcement of all sorts of reliable hose and PE Pipe
Applications
Armoured hoses
Hose reinforcing
Pipe
Competitive Advantage
Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
