0.965MM NT 1850MPa - 2200MPa Bright Steel Wire for Tire Bead Wire

China 0.965MM  NT 1850MPa - 2200MPa Bright Steel Wire for Tire Bead Wire supplier
0.965MM  NT 1850MPa - 2200MPa Bright Steel Wire for Tire Bead Wire supplier 0.965MM  NT 1850MPa - 2200MPa Bright Steel Wire for Tire Bead Wire supplier 0.965MM  NT 1850MPa - 2200MPa Bright Steel Wire for Tire Bead Wire supplier 0.965MM  NT 1850MPa - 2200MPa Bright Steel Wire for Tire Bead Wire supplier

Large Image :  0.965MM NT 1850MPa - 2200MPa Bright Steel Wire for Tire Bead Wire

Product Details:

Place of Origin: China
Brand Name: Gangda
Model Number: GD-10-04

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne

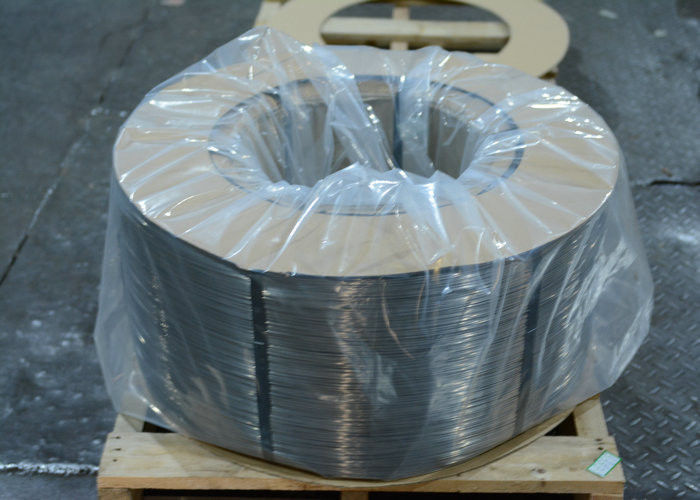

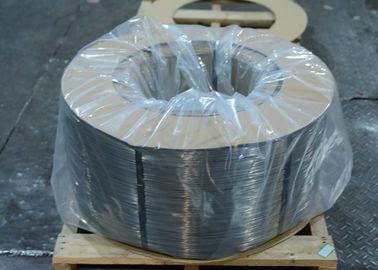

Packaging Details: 400 kgs Z2 coil with paper core
Delivery Time: 10-20 days
Contact Now
Detailed Product Description
Application: For Tyre Bead Wire Manufacture Size: 0.965mm
T/S: NT 1850MPa - 2150MPa Steel Grade: SWRH 72A
Pack: 400kgs Z-2 Pack Surface: Bright
Process: Cold Drawn
High Light:

tire bead wire

,

spring steel wire

Diameter 0.965MM  NT1850MPa - 2200MPa Bright High Carbon Steel Spring Wire for Tyre Bead Wire

Product

Bright High Carbon Spring Wire for Tire Bead Wire



Wire Diameter: 0.965mm

Tensile Strength: NT 1850 -2200 N/MM2

Surface: Without coating

Application

Manufacture of Tire Bead Wire

General



1.Steel rod carbon content: 0.70 %



2. Physical properties          Unit       TARGET         Min.            Max.         METHOD

Diameter                             mm

      0.965           0.945          0.985



Tensile strength                 MPa

      2030            1850           2200

  ISO 6892-1

Breaking Force                    N

      1485            1360           1600

  ISO 6892-1

Number of bends  r=2.5        -

         -                  -                    -

           -

Torsions @ break (100*d)    -

         -                  32                  -

  ISO 7800



3.Straight                            Unit       TARGET         Min.              Max.         METHOD

Cast of wire                         mm

           -                360               -



Helix                                    mm

          0                   -               100





4. Other Parameters           Unit     TARGET            Min.              Max.        METHOD

Number of welds on reel

           -                   -               1



Weld strength                      N

           -                600               -

 ISO 6892-1

Diameter at weld                mm

           -                   -             0.930



Weight of coil                      kg

        450              400             460



Width of coil                      mm

         280                 -              295
