JIS G3548 Zinc Coated Steel Wire , Cold Drawn High Carbon Wire Rod

Large Image : JIS G3548 Zinc Coated Steel Wire , Cold Drawn High Carbon Wire Rod

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-07-02

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z2 Pack, Strapped Coil
Delivery Time:	600 tonnes per Month

Contact Now

Detailed Product Description

Standard:	JIS G 3548 - 1994	Grade:	SWGD
Surface Finish:	Zinc	Process:	Hot Dipped And Dry Drawn
Packaging:	Z-2 Coil And Strapped Coil	Steel Grade:	Carbon Steel
High Light:	high carbon steel wire rod , high tensile galvanized wire

JIS G3548 Zinc Coated Steel Wire High Carbon Wire Rod Hot Dipped and Cold Drawn

GHANGHUA – High Carbon Spring Expert

Specification

1. Standard: JIS G 3521
2. Surface Finish: Zinc
3. Production processes: Hot dipped and Dry cold drawn
4. Diameter and Mechanical properties

Diameter

0.60 0.65 0.70 0.80 0.90 1.00 1.00 1.20

1.40 1.60 1.80 2.00 2.30 2.90 3.20 3.50

Zinc coating weight g/mm2

Diameter mm	SWGD ( – 1 / -2 / -3 )
0.60 – up 0.80	60
0.80 – up 1.00	70
1.00 – up 1.20	80
1.20 – up 1.50	90
1.50 – up 1.90	100
1.90 – up 2.50	110
2.50 – up 3.20	125

Diameter Tolerance mm

Diameter mm	SWGD ( – 1 / -2 / -3 )
0.60 – up 0.80	+ 0.02
0.80 – up 1.00	+ 0.02
1.00 – up 1.20	+ 0.03
1.20 – up 2.00	+ 0.03
2.00 – up 3.20	+ 0.04

Mechanical properties

Diameter mm	Tensile Strength N/mm2			Torsion N
Diameter mm	SWGD-1	SWGD-2	SWGD-3	SWGD
0.60 – up 0.80	1520-1770	1170-2060	2060-2350	20
0.80 – up 1.00	1520-1770	1170-2010	2010-2260
1.00 – up 1.20	1470-1720	1720-1960	1960-2210
1.20 – up 1.40	1420-1670	1670-1810	1910-2160
1.40 – up 1.60	1370-1620	1620-1860	1860-2110
1.60 – up 1.80	1320-1570	1570-1810	1810-2060
1.80 – up 2.00	1270-1520	1520-1770	1770-2010
2.00 – up 2.30	1270-1470	1470-1720	1770-2010	15
2.30 – up 2.60	1230-1420	1420-1670	1720-1960
2.60 – up 2.90	1230-1420	1420-1670	1670-1910
2.90 – up 3.20	1180-1370	1370-1620	1620-1860

Description

A range of zinc coated wire products are available for various application. manufactored from quality carbon wire rod, hot dipped and dry cold drawn.

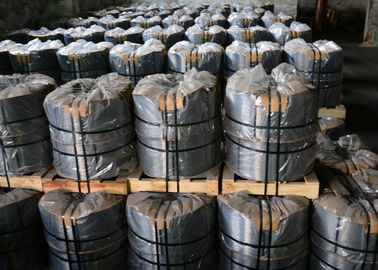

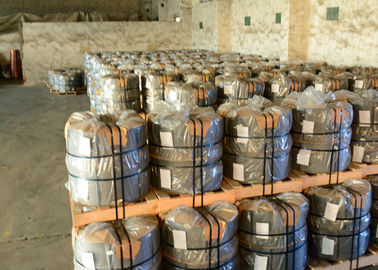

Packaging:

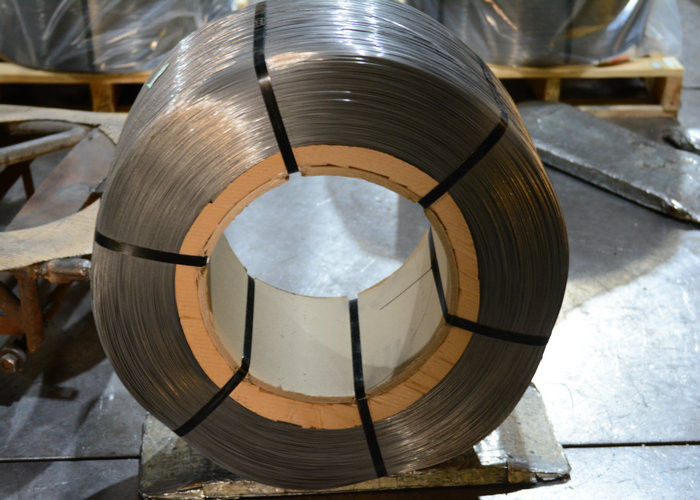

400kgs with spooless cores Z -2 Packs

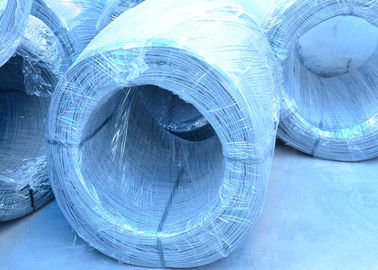

Strapped Coils

Advantage

Strict raw material selection

Consistent quality

Superior surface finish

Trouble- free pay off
