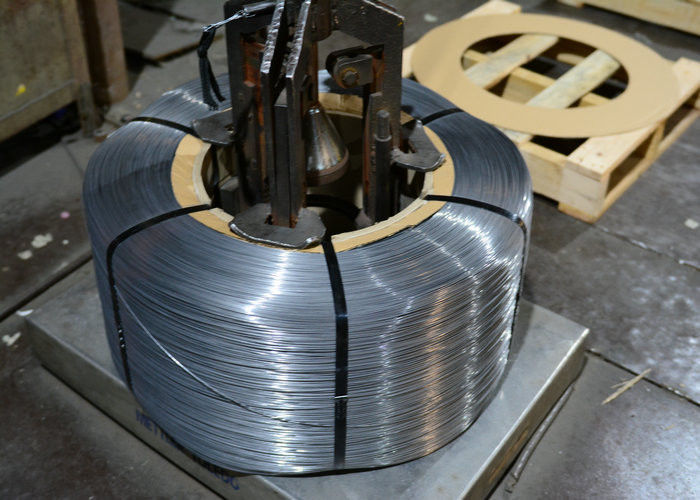

1.7272mm Special High Carbon Patented Wire , bright flat spring wire

Large Image : 1.7272mm Special High Carbon Patented Wire , bright flat spring wire

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-08-02

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	400 +/- 20 kgs with spoolless cores Z-2 Packs, 2 ocoils in one pallet.
Delivery Time:	7 days
Supply Ability:	1000 tonne

Contact Now

Detailed Product Description

Usage:	Be Flatteed To 0.7112mm Brush Wire	Diameter:	1.7272mm
Steel Grade:	Rod Grade 1045– Rod Grade 1060 CARBON Steel	Surface Finish:	Phoshpate And Bright Dry Drawn
Packaging:	900 Lbs +/- 45 Lbs With Spoolless Cores Z-2 Packs, 2 Ocoils In One Pallet.	Processes:	Patented And Hard Cold Drawn
High Light:	patent wire , high strength wire

1.7272mm Special High Carbon Patented Spring Wire Flatten to 0.7112mm Brush Wire

Specification

Diameter: 1.7272mm

Diameter Tolerance: +/- 0.02mm

Tensile Strength: 1350MPa - 1550Mpa

Aim: Aim 1380Mpa – 1480 Mpa

Surface Finishes: Bright

Steel Grade: rod grade 1045– rod grade 1060 CARBON steel

Package: 400 kgs +/- 20 kgs with spoolless cores Z-2 Packs, 2 ocoils in one pallet.

ID: 355 mm Min.

OD: 737mm Max.

Wire reel Width: 280mm

Description:

This wire is patented, cold drawn round high carbon spring wire and be flattened to 0.7112mm flat wire, suitable for wire bush manufacture.

Applications:

wire brush manufacture.

Competitive Advantage:

Consistent high quality for flattening.

Clean finish

Tag:

high strength wire,

patent wire,

carbon steel wire rod
