Bright Round hard drawn spring wire , 0.60mm - 4.25mm high carbon steel wire rod

Large Image : Bright Round hard drawn spring wire , 0.60mm - 4.25mm high carbon steel wire rod

Product Details:

Place of Origin:	China
Brand Name:	Gangda
Model Number:	GD-05-07

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	Z2 Coils with paper core
Supply Ability:	1800 tonne per Month

Contact Now

Detailed Product Description

Standard:	DIN 17223	Size Range:	0.60mm - 4.25mm
Surface Finish:	Bright Dry Drawn And Phosphatized	Process:	Patented And Cold Drawn
Packaging:	Z2 Coil With Paper Core
High Light:	carbon steel wire , Tyre Bead Wire

Product: Patented Cold Round Carbon Spring Steel Wire Standard DIN 17223 Packed in Z2 Coil with Paper

Specification

Surface Finish: Bright dry drawn and phosphatize
Bright dry drawn and grey
Standard: DIN 17223
Diameter and Mechanical properties

1. Mechanical properties

Diameter mm	Tensile Strength N/mm2		Diameter mm	Tensile Strength N/mm2
Diameter mm	Class A	Class B	Diameter mm	Class A	Class B
0.6	-	2140 ~ 2400	1.7	1570 ~ 1800	1810 ~ 2030
0.63	-	2130 ~ 2380	1.8	1550 ~ 1780	1790 ~ 2010
0.65	-	2120 ~ 2370	1.9	1540 ~ 1760	1770 ~ 1990
0.7	-	2090 ~ 2350	2	1520 ~ 1750	1760 ~ 1970
0.75	-	2070 ~ 2320	2.1	1510 ~ 1730	1740 ~ 1960
0.8	-	2050 ~ 2300	2.25	1490 ~ 1710	1720 ~ 1930
0.85	-	2030 ~ 2280	2.4	1470 ~ 1690	1700 ~ 1910
0.9	-	2010 ~ 2260	2.5	1460 ~ 1680	1690 ~ 1890
0.95	-	2000 ~ 2240	2.6	1450 ~ 1660	1670 ~ 1880
1	1720 ~ 1970	1980 ~ 2220	2.8	1420 ~ 1640	1650 ~ 1850
1.05	1710 ~ 1950	1960 ~ 2200	3	1410 ~ 1620	1630 ~ 1830
1.1	1690 ~ 1940	1950 ~ 2190	3.2	1390 ~ 1600	1610 ~ 1810
1.2	1670 ~ 1910	1920 ~ 2160	3.4	1370 ~ 1580	1590 ~ 1780
1.25	1660 ~ 1900	1910 ~ 2140	3.6	1350 ~ 1560	1570 ~ 1760
1.3	1640 ~ 1890	1900 ~ 2130	3.8	1340 ~ 1540	1550 ~ 1740
1.4	1620 ~ 1860	1870 ~ 2100	4	1320 ~ 1520	1530 ~ 1730
1.5	1600 ~ 1840	1850 ~ 2080	4.25	1310 ~ 1500	1510 ~ 1700
2	1520 ~ 1750	1760 ~ 1970

2. Chemical Requirements

Chemical Requirements

Element	Composition, %
Carbon	0.45 – 0.85
Manganese	0.30 – 1.00
Phosphorus, max	0.040
Sulfur, max	0.050
Silicon	0.020

3. Cast

As per client’s request

Descripation

This wire is patented cold drawn round carbon steel wire, normally used for helical springs ( tension, compression and torsion springs), springs washer and other wire spring.

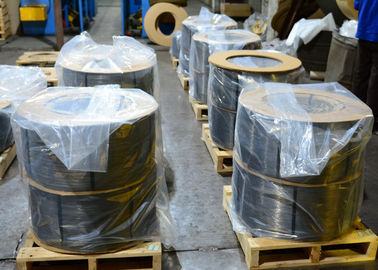

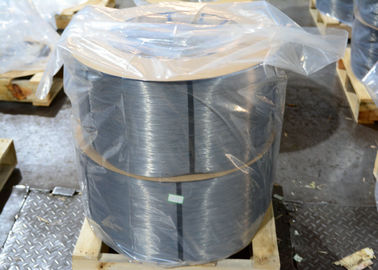

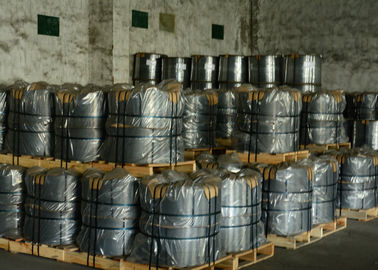

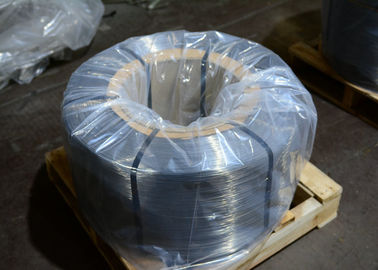

Packaging

Z2 coils with paper core
Z3 coils with paper core
Strapped Coils
Former

Usage

Class A	Tension, compression, torsion or shaped spring subjected to low static stress or rarely to dynamic stress.
Class B	Tension, compression, torsion or shaped spring subjected to medium and low static stress dynamic stress.

Advantage

Strict raw material selection
Quality quipment
Consistent tensile strength
Wire free of defect
Clear surface
rouble- free pay off

Tag:

steel spring wire,

carbon steel wire,

Tyre Bead Wire
