Round Bright dry drawn and phosphatized high strength Steel wire Rod

China Round Bright dry drawn and phosphatized high strength Steel wire Rod supplier
Round Bright dry drawn and phosphatized high strength Steel wire Rod supplier Round Bright dry drawn and phosphatized high strength Steel wire Rod supplier Round Bright dry drawn and phosphatized high strength Steel wire Rod supplier Round Bright dry drawn and phosphatized high strength Steel wire Rod supplier

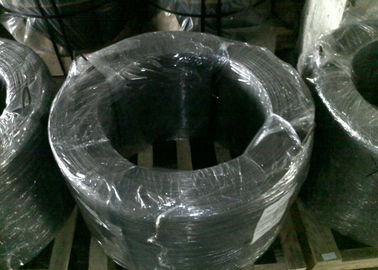

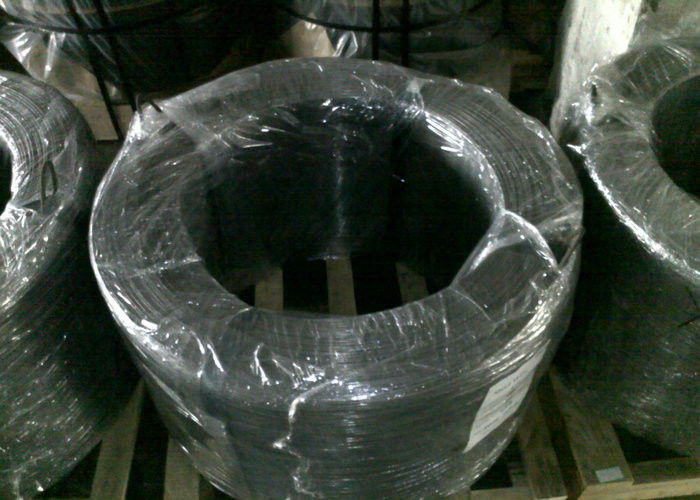

Large Image :  Round Bright dry drawn and phosphatized high strength Steel wire Rod

Product Details:

Place of Origin: China
Brand Name: Gangda
Model Number: GD-05-07

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne
Packaging Details: Z2 Coils with paper core
Contact Now
Detailed Product Description
Standard: DIN 17223 Size Range: 0.60mm - 4.25mm
Surface Finish: Bright Dry Drawn And Phosphatized Process: Patented And Cold Drawn
Packaging: Z2 Coil With Paper Core

Product: Round Steel Wire for Spring According to DIN 17223

Description

GHANGHUA – High Carbon Spring Export   a leading high carbon wire manufacture in China, we may supply you high quality round steel wire according to DIN 17223.

Specification

  • Surface Finish: Bright dry drawn and phosphatize
  •                          Bright dry drawn and grey
  • Standard: DIN 17223
  • Diameter and Mechanical properties



1.                                            Mechanical properties

Diameter mm

Tensile Strength N/mm2

Diameter mm

Tensile Strength N/mm2

Class A

Class B

Class A

Class B

0.6

-

2140 ~ 2400

1.7

1570 ~ 1800

1810 ~ 2030

0.63

-

2130 ~ 2380

1.8

1550 ~ 1780

1790 ~ 2010

0.65

-

2120 ~ 2370

1.9

1540 ~ 1760

1770 ~ 1990

0.7

-

2090 ~ 2350

2

1520 ~ 1750

1760 ~ 1970

0.75

-

2070 ~ 2320

2.1

1510 ~ 1730

1740 ~ 1960

0.8

-

2050 ~ 2300

2.25

1490 ~ 1710

1720 ~ 1930

0.85

-

2030 ~ 2280

2.4

1470 ~ 1690

1700 ~ 1910

0.9

-

2010 ~ 2260

2.5

1460 ~ 1680

1690 ~ 1890

0.95

-

2000 ~ 2240

2.6

1450 ~ 1660

1670 ~ 1880

1

1720 ~ 1970

1980 ~ 2220

2.8

1420 ~ 1640

1650 ~ 1850

1.05

1710 ~ 1950

1960 ~ 2200

3

1410 ~ 1620

1630 ~ 1830

1.1

1690 ~ 1940

1950 ~ 2190

3.2

1390 ~ 1600

1610 ~ 1810

1.2

1670 ~ 1910

1920 ~ 2160

3.4

1370 ~ 1580

1590 ~ 1780

1.25

1660 ~ 1900

1910 ~ 2140

3.6

1350 ~ 1560

1570 ~ 1760

1.3

1640 ~ 1890

1900 ~ 2130

3.8

1340 ~ 1540

1550 ~ 1740

1.4

1620 ~ 1860

1870 ~ 2100

4

1320 ~ 1520

1530 ~ 1730

1.5

1600 ~ 1840

1850 ~ 2080

4.25

1310 ~ 1500

1510 ~ 1700

2

1520 ~ 1750

1760 ~ 1970









2. Chemical Requirements



                                       Chemical Requirements

Element

Composition, %

Carbon

0.45 – 0.85

Manganese

0.30 – 1.00

Phosphorus, max

0.040

Sulfur, max

0.050

Silicon

0.020



3. Cast



    As per client’s request

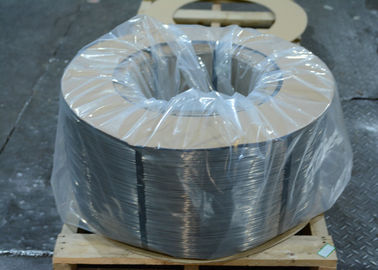

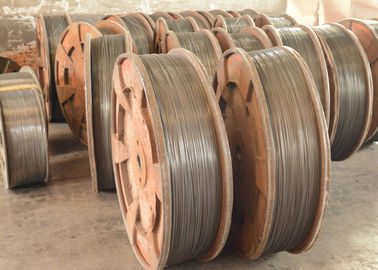

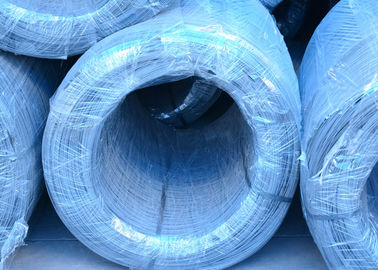

4.Packaging

  •   Z2 coils with paper core
  •   Z3 coils with paper core
  •   Strapped Coils
  •   Former

5. Usage

Class A

Tension, compression, torsion or shaped spring subjected to low static stress or rarely to dynamic stress.

Class B

Tension, compression, torsion or shaped spring subjected to medium and low static stress dynamic stress.



6.Advantage

  • Strict raw material selection
  • Quality quipment
  • Consistent tensile strength
  • Wire free of defect
  • Clear surface
  • rouble- free pay off
