Air Duct 70# Uncoated High Carbon Steel Wire Rod Diameter 0.90 - 1.60mm

China Air Duct 70#  Uncoated High Carbon Steel Wire Rod Diameter 0.90 - 1.60mm supplier
Air Duct 70#  Uncoated High Carbon Steel Wire Rod Diameter 0.90 - 1.60mm supplier Air Duct 70#  Uncoated High Carbon Steel Wire Rod Diameter 0.90 - 1.60mm supplier Air Duct 70#  Uncoated High Carbon Steel Wire Rod Diameter 0.90 - 1.60mm supplier Air Duct 70#  Uncoated High Carbon Steel Wire Rod Diameter 0.90 - 1.60mm supplier

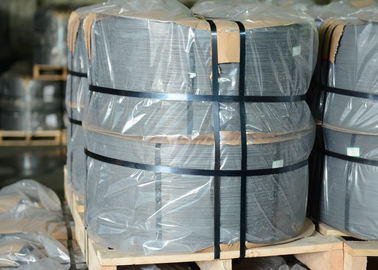

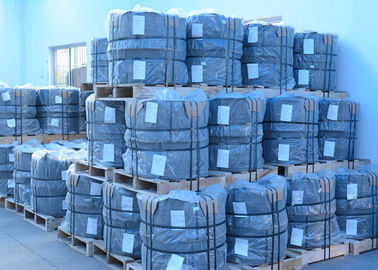

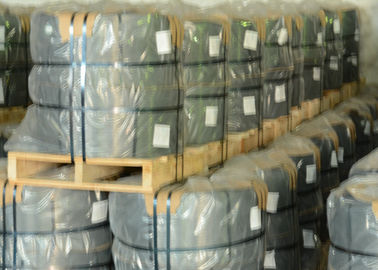

Large Image :  Air Duct 70# Uncoated High Carbon Steel Wire Rod Diameter 0.90 - 1.60mm

Product Details:

Place of Origin: China
Brand Name: GangDa
Model Number: GD-02-17

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne
Packaging Details: Z-2 Pack Stee reel
Delivery Time: 20 work days
Supply Ability: 1500 tonnes per month
Contact Now
Detailed Product Description
Steel Grade: 70# High Carbon Steel Wire Rod Finishes: Bright / Uncoated
Pack: Z-2 Pack Or Steel Reel Standard: DIN 17223 EN10270
Application: Air Duct & Hose Size Range: 0.90mm - 1.60mm
High Light:

high carbon wire rod

,

High Tensile Steel Wire

Wire Rod  70#  High Carbon Steel Wire Diameter 0.90 - 1.60mm Air Duct



Specifications:

Diameter: 0.90 – 1.60mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1750 – 2300 Mpa.
Surface Finish: Phosphatized and Bright dry drawn
Steel Grade: SAE 1070

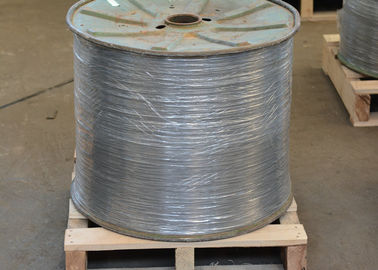

Package: 1) 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs, 2 or 3
                     coils in one pallet.
                     ID: 355mm ( 14”)  Min.
                     OD: 737mm (29”) Max.
                     Wire reel Width: 280 mm (11”)
                2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
                     Flange diameter: 630mm
                     Traverse length: 400mm
                     Barrel diameter: 360 mm
                     Height of reel: 475mm
Standard: DIN 17223  JISG 3521.
Description:
High carbon Spring Steel Wire is patented cold drawn round carbon steel wire,  used for helical spring of air duct
Applications:
air duct
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of springs
Clean wire surface
Trouble-free forming
Trouble - off pay off
