H. C. Bronze Washed Bright Steel Wire Rods for Spring , High Strength Steel Wire

Large Image : H. C. Bronze Washed Bright Steel Wire Rods for Spring , High Strength Steel Wire

Product Details:

Place of Origin:	China
Brand Name:	GangDa
Model Number:	GD-01-11

Payment & Shipping Terms:

Minimum Order Quantity:	1 tonne
Packaging Details:	400 kgs with spooless cores Z-2 Packs, 2 or 3 coills in one pallet, 24 Pallets per 20" Container
Delivery Time:	25 work days
Supply Ability:	1000 tonnes per Month

Contact Now

Detailed Product Description

Application:	Flexible Air Duct & Hose	Size Range:	0.78mm To 1.50mm
Steel Grade:	SWRH72A	Packaging:	400kg +/-20kgs Z2 Coil With Paper Core
Finishes:	Bronze Washed	Standard:	GB14450-2003
High Light:	spring steel wire , high carbon steel wire

H. C. Bronze Spring Steel Wire T / S 1750 to 2300Mpa Air duct Diameter 0.78 to 2.00mm Z2 pack

Specifications:

1. Diameter: 0.78 0.90mm 1.00mm 1.10mm 1.20mm 1.26mm 1.50mm

Diameter Tolerance: +/- 0.02mm

2. Finishes: Bronze coating

3. Weight of bronze coating: 0.30 -1.35 g/kg

4. Tensile Strength: 1750 – 2300 Mpa

5. Steel Grade: High Carbon Steel C1065 C1070 C1072 C1080

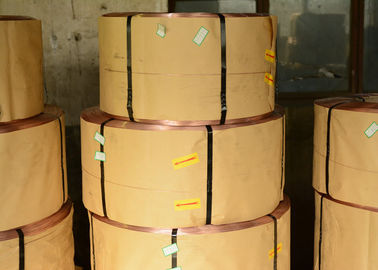

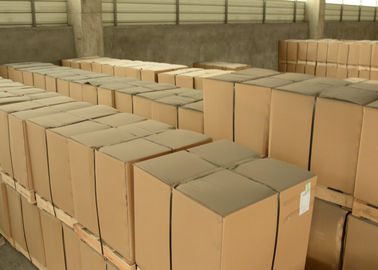

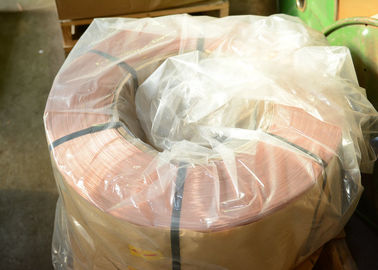

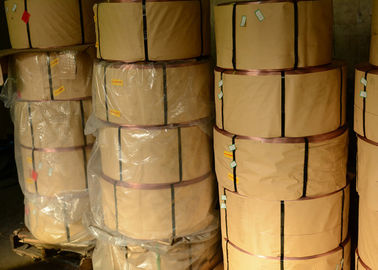

6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.

ID: 355mm Min.

OD: 720mm Max.

Wire reel Width: 280mm

7. Standard: GB14450-2004 or as per client’s specification

Description:

Tyre bead wire from Guanghua Company , used for kinds of Air duct, hose and PE pipe.

Applications:

Armoured hoses

Flexible ducting

Hose reinforcing

Competitive Advantage:

Excellent surface coating

High dimensional accuracy

Trouble-free forming

Trouble-free pay off
