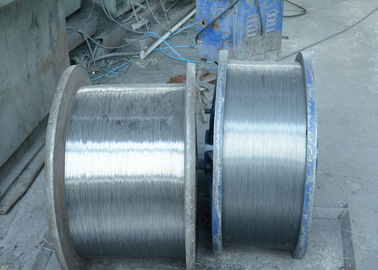

Galvanised High Carbon Spring Steel Wire for Duct and Hose Diameter 0.90mm 1.00mm 1.10mm 1.30mm
Specifications:
Diameter: 0.90mm 1.00mm 1.10mm 1.30mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1710 Mpa – 2300 Mpa.
Finishes: Galvanised
Weight of Zinc coating: more than 94 g/m2
Steel Grade: rod grade C1070 HIGH CARBON steel

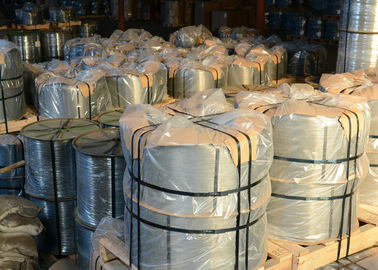

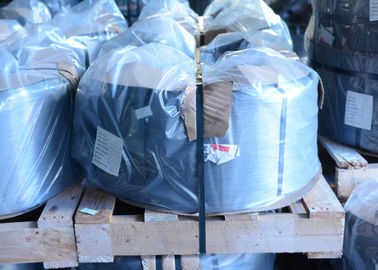

Package: 400kgs +/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
Description:
This wire is produced with superior Zinc surface finish and free of residual contamination. Manufactured from quality high carbon wire rods and dedicated production processes ensures that give high dimensional accuracy and minimal helix distortion, which results in trouble free payoff and forming.
Applications:
Armoured hoses
Flexible ducting
Hose reinforcing
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of reliable hose and ducting products.
Excellent Zinc surface coating
High dimensional accuracy
Trouble-free pay off and forming
