High strength patented cold - draw spring steel Wire Z-2 Pack Steel Reel

China High strength patented cold - draw spring steel Wire  Z-2 Pack Steel Reel supplier
High strength patented cold - draw spring steel Wire  Z-2 Pack Steel Reel supplier High strength patented cold - draw spring steel Wire  Z-2 Pack Steel Reel supplier High strength patented cold - draw spring steel Wire  Z-2 Pack Steel Reel supplier High strength patented cold - draw spring steel Wire  Z-2 Pack Steel Reel supplier

Large Image :  High strength patented cold - draw spring steel Wire Z-2 Pack Steel Reel

Product Details:

Place of Origin: China
Brand Name: GangDa
Model Number: GD-03-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 tonne
Packaging Details: 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs
Delivery Time: 20 work days
Supply Ability: 600 tonnes per month
Contact Now
Detailed Product Description
Steel Grade: High Carbon Steel 77A CD82A Size Range: 0.63 - 1.42mm
Tensile Strength: 2100 - 2400 Mpa Pack: Z-2 Pack
Standard: ASTM A 679 / A 679 M

High Tensile strength patented cold-draw steel spring Wire T/S 2100-2400Mpa  Z-2 Pack Steel Reel



Specifications:

Diameter: 0.63mm 0.73mm 0.82mm 0.93mm 1.03mm 1.23mm 1.42mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 2100Mpa. - 2400Mpa.
Finish: Bright / Uncoated
Steel Grade: rod grade 77A and  CD82A  HIGH CARBON steel

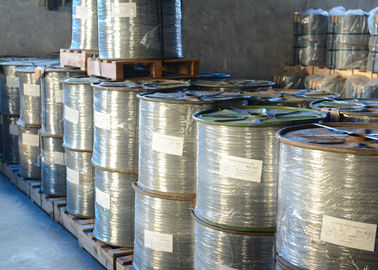

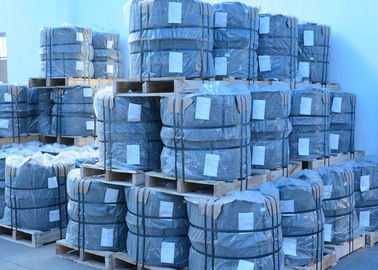

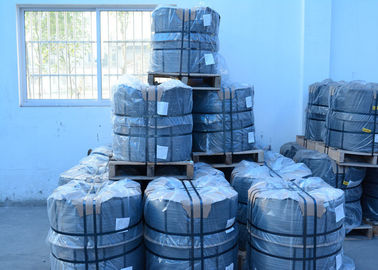

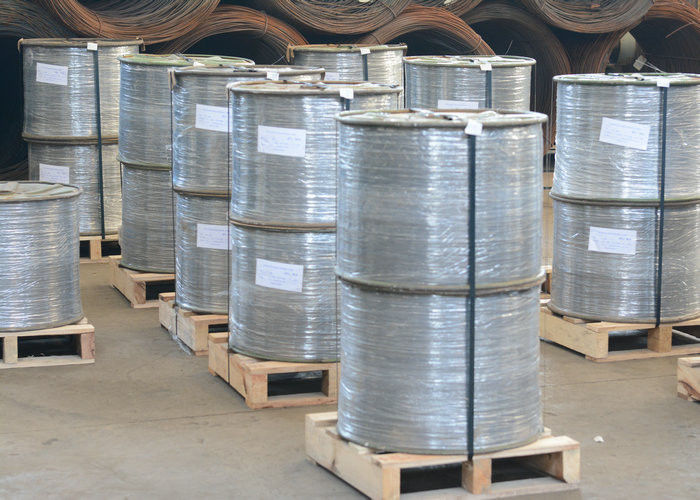

Package: 400kgs +/-20kgs ( 900 lbs +/- 45 lbs ) with spooless cores Z-2 Packs,
               1 or 2 coils in one pallet. 20 - 25 tonnes per 20" container
Wire coil: ID: 355mm  Min.
               OD: 737mm  Max.
               Wire reel Width: 280 mm

Description:

This wire is round ,uncoated, high tensile strength, cold-drawn steel spring wire, having properties quality suitable for wire shot, the manufacture of mechanical spring, wire froms subject to high static stresses or infrequent dynamic load or both.

Applications:

mechanical spring,
wire from
cut wire shot.

Competitive Advantage:

Consistent high quality steel wires for efficient manufacture of mechanical spring, wire froms,wire shot.
Excellent surface coating
High dimensional accuracy
Trouble-free pay off and forming
